ø 3 3/4 digit back light LCD, with a max. reading of 3999.
ø With the USB2.0 interface, can link to PC and transmit the measurement
data to PC.
ø Polarity, Over range, Low Battery Indication.
ø Dwell Angle, Tacho, RPM, duty cycle, temperature measurement.
ø Manual and auto ranging mode, Relative mode, Data-hold mode.
Technical data
Dwell Angle: 2-3-4-5-6-8CYL (180°/120°/90°/72°/60°/45°)
Tacho: 250~40kRMP, Highest Resolution: 1RMP
Duty Cycle: 5%~95%
Temperature: -20~1000℃ / -4~1832
Voltage DC: 400m/4/40/250V
Voltage AC: 4/40/250V
Current DC: 400μ/4000μ/40m/400m/4/10A
Current AC: 400μ/4000μ/40m/400m/4/10A
Resistance: 400/4k/40k/400k/4M/40MΩ
Frequency: 5/50/500/5k/50k/200kHz
Diode Check: approx. 1.5V
Continuity: Less than about 50Ω, more than about 120Ω
Power Supply: 9V(6F22) battery×1pc

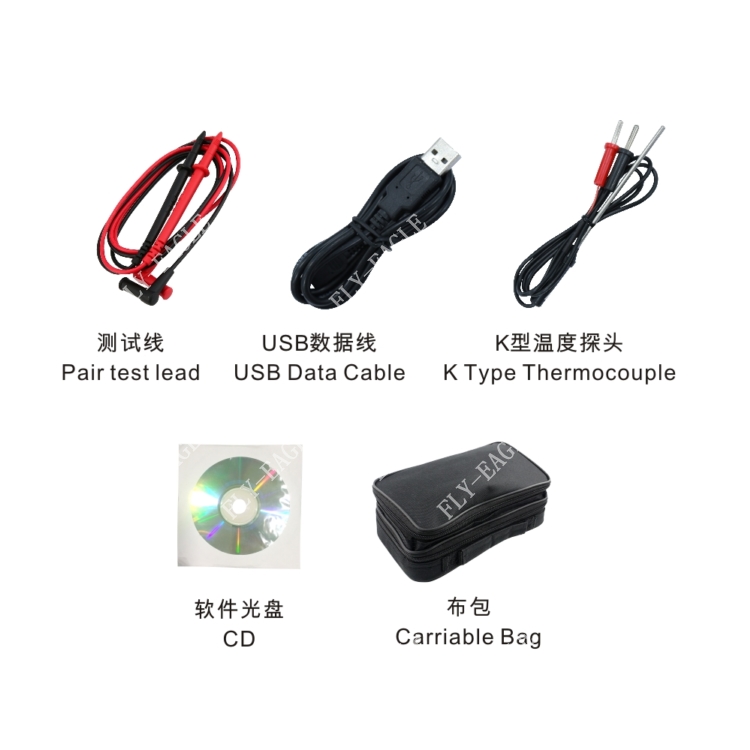

Accessories
Carriable Bag ，Test Lead (pair) ，USB Data Cable ，CD，
K Type Thermocouple
