Features
ø 3 3/4-digit back light LCD, with a max. reading of 3999
ø With the USB2.0 interface, can link to PC and transmit the
measurement data to PC.
ø Polarity, Over range, Low Battery Indication
ø Dwell Angle, Tacho, RPM, duty cycle, temperature (℃/°F), internal
resistance of vehicle battery, resistance, voltage, current, and
frequency management
ø Manual and auto ranging mode, Relative mode, Data-hold mode.
Technical data
Battery Resistance: 400m/4000mΩ (<36V, 1kHz 50mA)
Dwell Angle: 2-3-4-5-6-8CYL (180°/120°/90°/72°/60°/45°
Tacho: 250~40kRMP, Highest Resolution: 1RMP
Voltage DC: 400m/4/40/400/600V
Voltage AC: 4/40/400/600V
Current DC: 400μ/4000μ/40m/400mA
Current AC: 400μ/4000μ/40m/400mA
Resistance: 400/4k/40k/400k/4M/40MΩ
Frequency: 4k/40k/400kHz
Duty Cycle: 5% to 90%
Temperature: -20 to 1000℃ /
Diode Check: approx.3V
Continuity: The bulit-in buzzer will sound if the resistance is less
than 30Ω
Power Supply: 9V(6F22) battery×1pc
Fuse Protection for "A°C°F" Jack Inputs: 500mA, 690V, FAST,
Min. Interrupt Rating 20000A

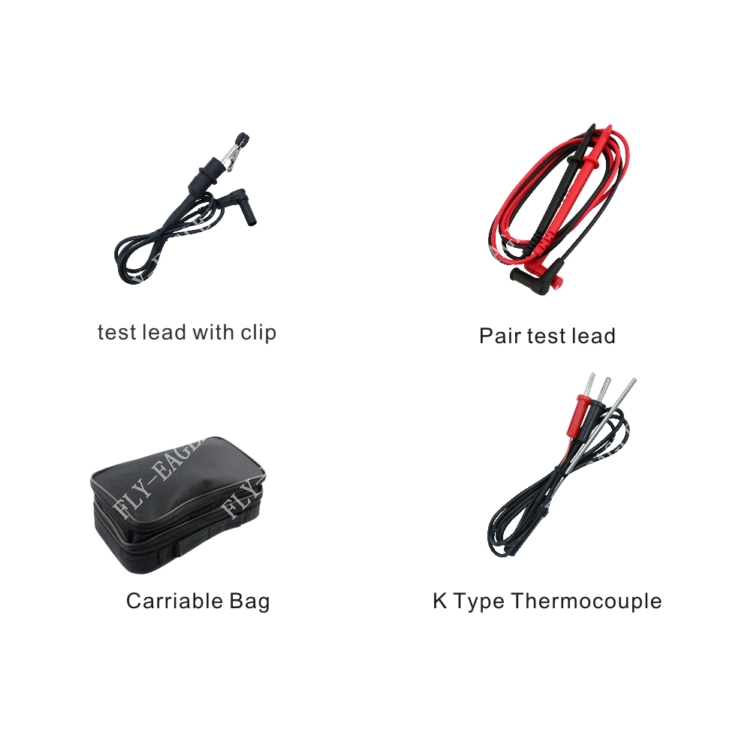

Accessories
Carriable Bag,Test lead with Clip ,Test lead ,K Type thermocouple
