※ Automatic mains voltage monitoring.
※ Overheating protection.
※ Designed for dent pulling of different kinds of car steels such as conventional steel, stainless steel, etc.
※ With HUA curved silicon steel sheet and energy efficient main transformer.
※ With DELIXI, OMRON and PANASONIC high quality relay.
※ High precision time adjustment system.
※ Single-sided and double-sided welding.
※ Various welding procedures are available such as shrinking, washer welding, dent pulling, spot welding, flattening,
wavy wire welding, stud welding, OT washer welding, triangle washer welding etc.
※ Complete with air filter and pressure regulator.
※ Uniquely designed gun cable support arm allows flexible movement with 360o rotation.
※ Equipped with switchable spot gun and multifunctional puller.
※ Digital graphic LCD monitor.
※ Stepless current regulation.
※ 10 preset weld programs.
※ 60 memory functions.
※ Electrodes of C-type gun can be step-by-step opened and quadratic rapid closed.
Technical Data
Input voltage:
Input power:
Input current:
Max welding current:
One-side welding thickness:
Two-side welding thickness:
Air supply pressure:
Operation way:
Weld timing range:
Dimensions:
Weight:
|
AC380V 50/60Hz
45KVA
55A
13000A
1.0+1.5mm
3.0+3.0mm
4-8kg
Electronic timer continuously
0-99s
740x610x1800mm
168kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.

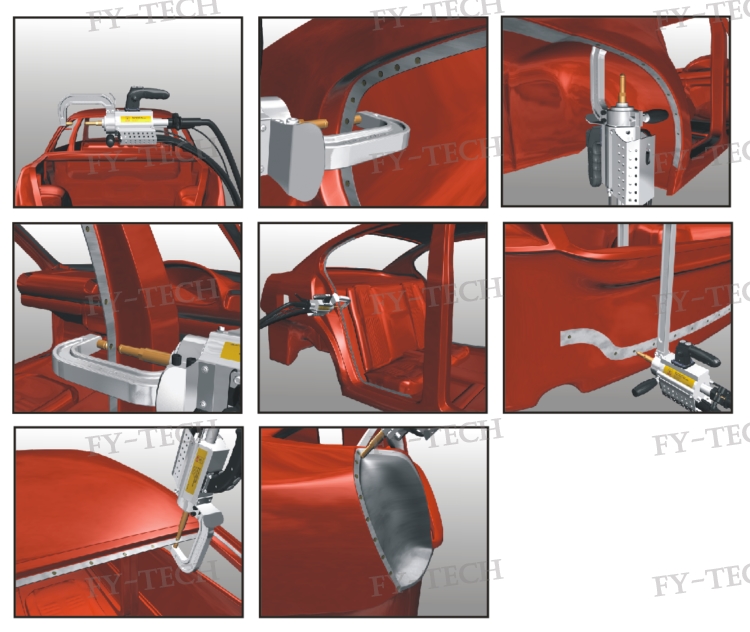

Standard C-type Gun

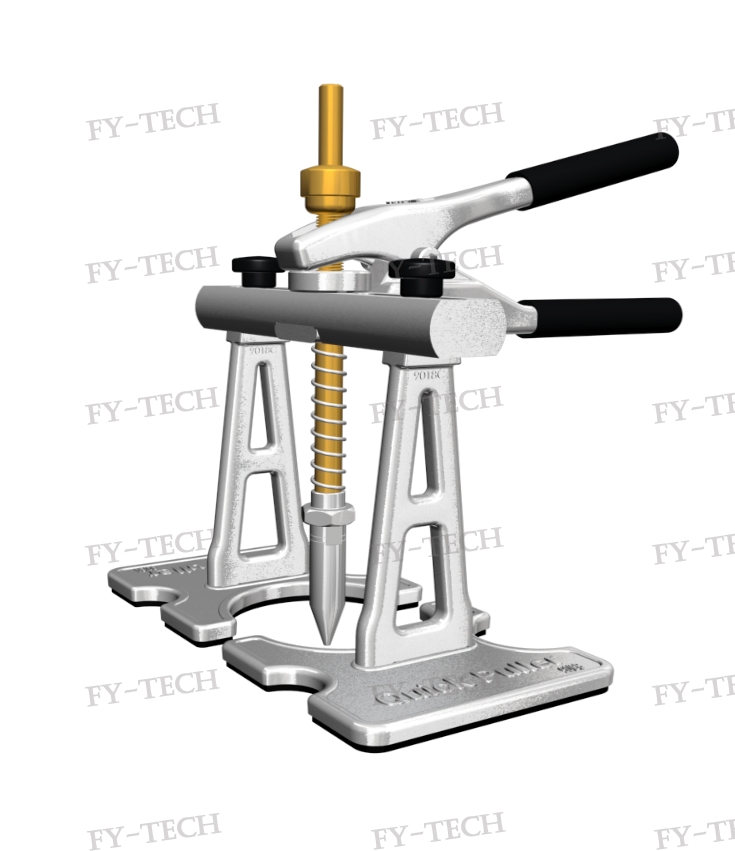

Quick Puller

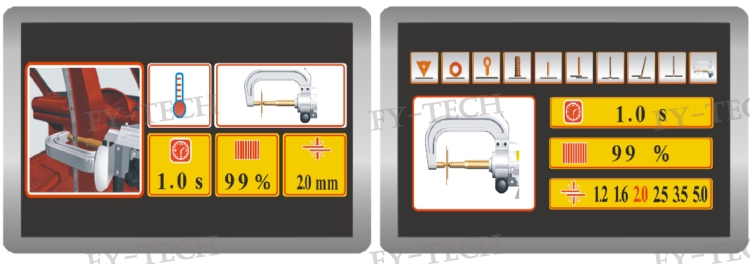

Control Panel

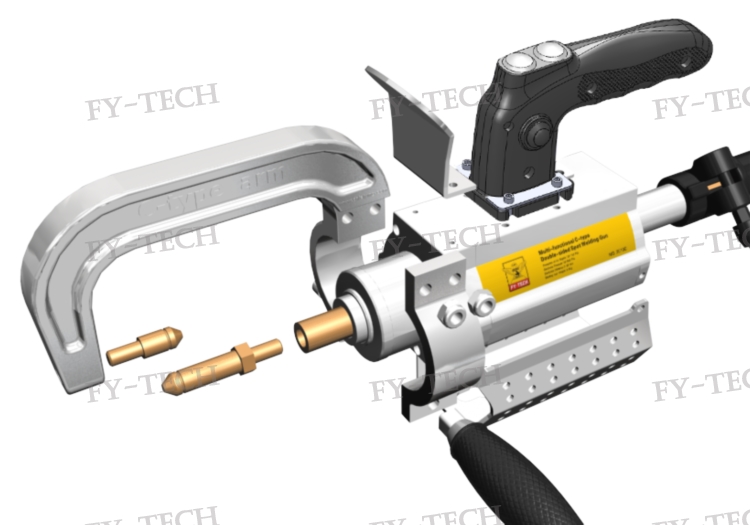

C-type Gun Details
Pictures are for reference only, please subject to our available products.

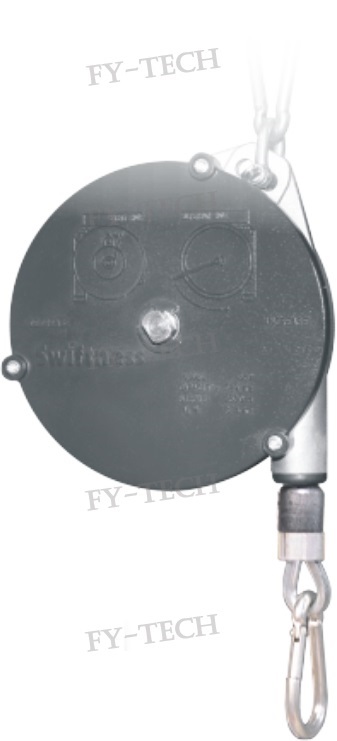

Optional Balancer

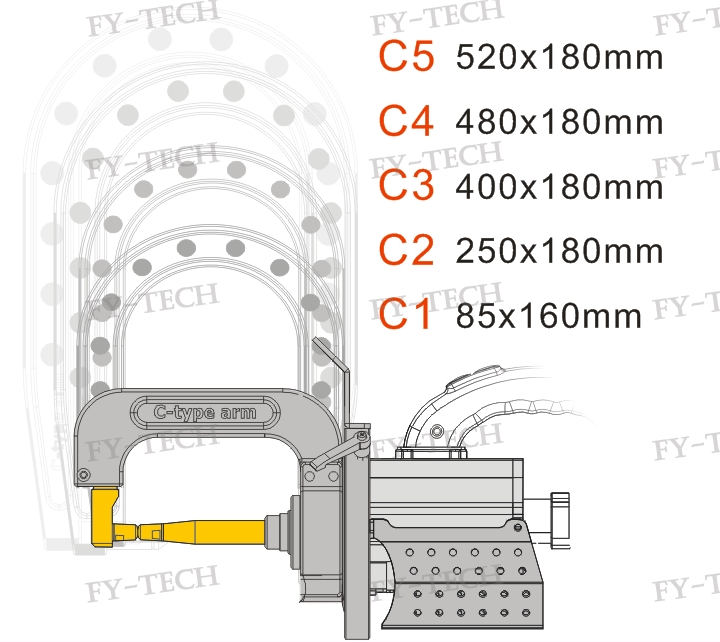

Optional Arms of C-type Gun

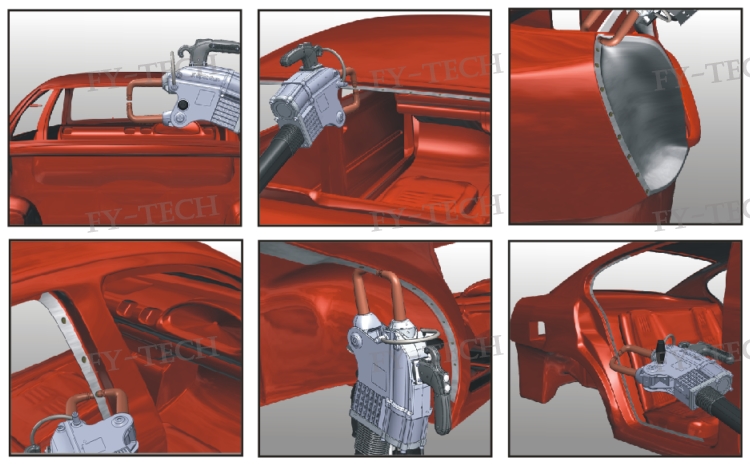

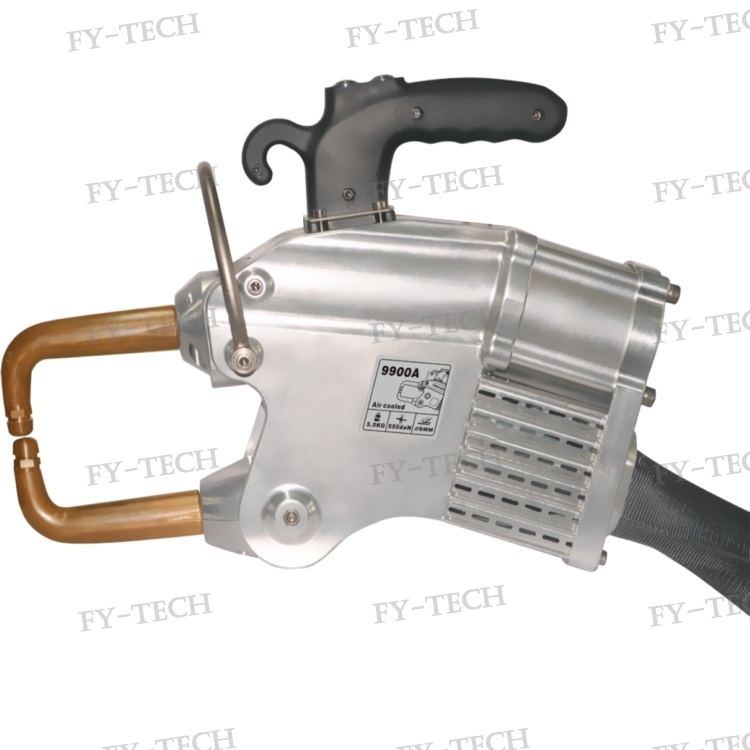

Optional X-type Gun
Users Can Choose C-type Gun Or X-type Gun.

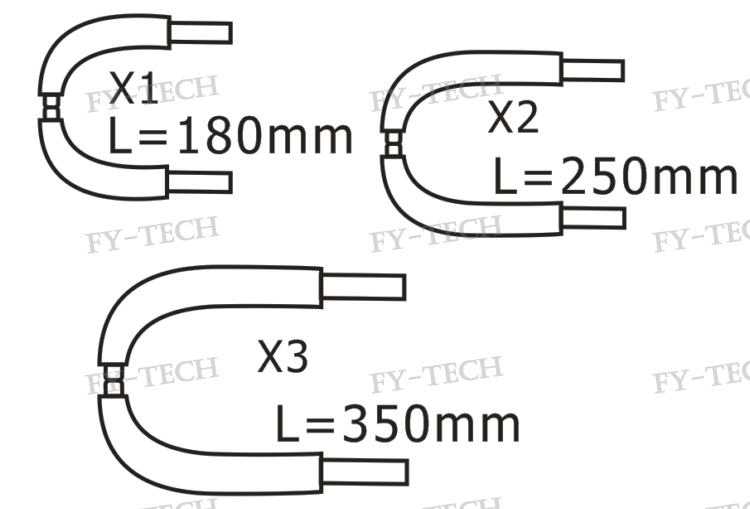

Optional Arms of X-type Gun
X-type Gun Details

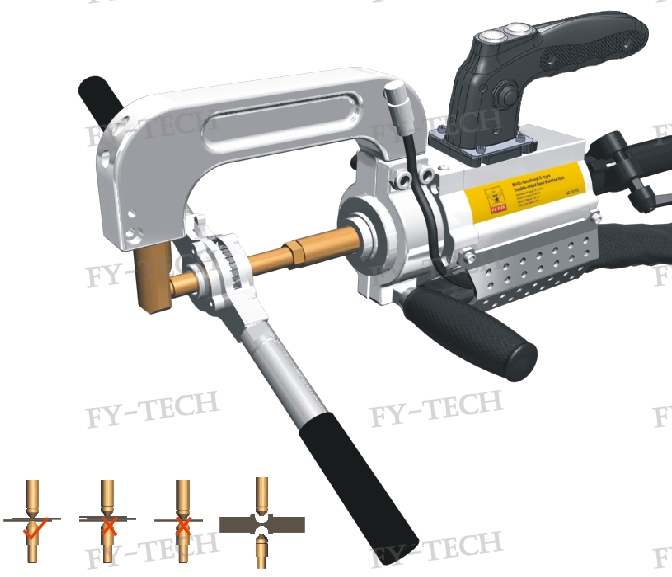

Optional Electrode Sharper
1) For C-type Gun

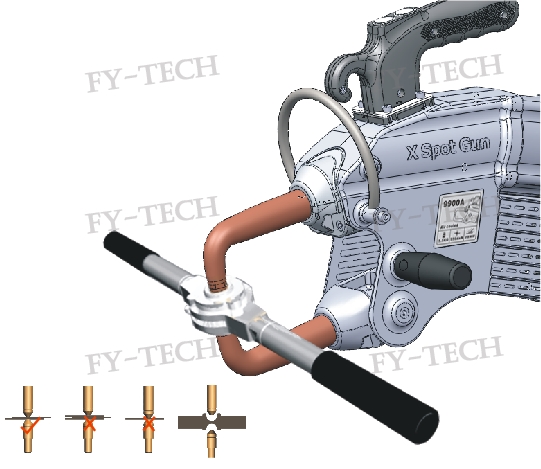

2) For X-type Gun

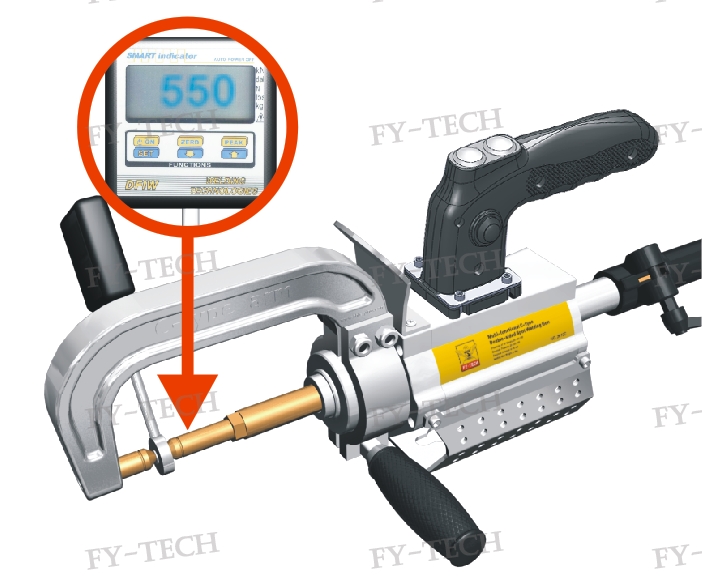

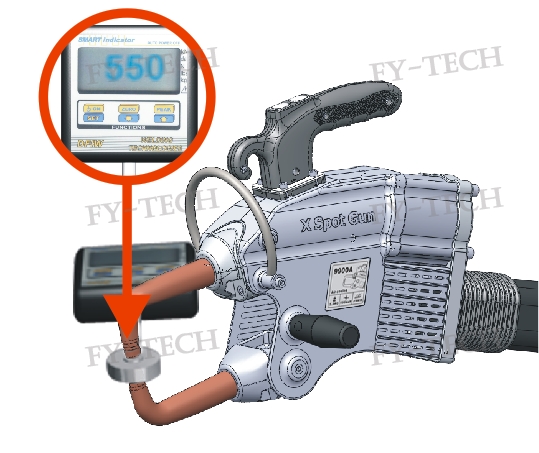

Optional Electrode Pressure Gauge
1) For C-type Gun
2) For X-type Gun

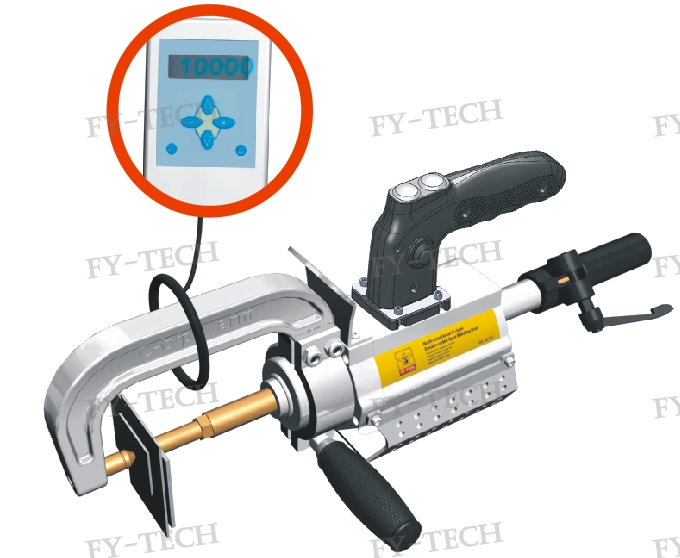

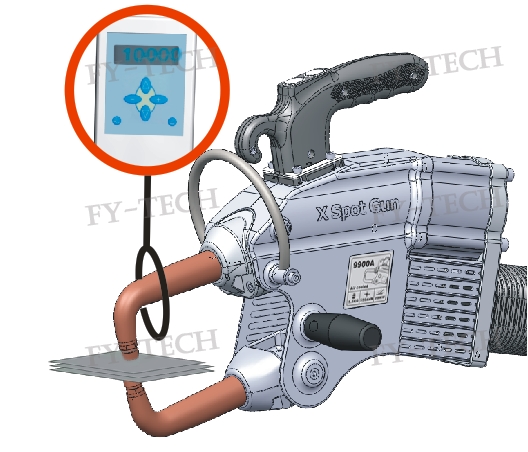

Optional Welding Current Tester
1) For C-type Gun
2) For X-type Gun
Pictures are for reference only, please subject to our available products.
