FY-16DC air-cooled spot welder adopts the most advanced SEMIKRON
IGBT inverter with dual full bridge soft switching circuit technology
providing quality spot welds with all new high-strength steels. The
spotter features a large 5” LCD monitor and PET hot press formed control
panel that is capable of displaying welding material, time, power and
thickness of various welding modes.Easy to learn how to use.
Sophisticated circuitry ensures the highest accuracy in reading data.
The core components are imported from European premium brands to enhance
overall performance and for quality assurance. FY-16DC inverter stop
welder with double-sided C-type gun keeps you in pace with the world.
Technical Data
Input voltage:
Input power:
Input current:
Max welding current:
Max output power:
One-side welding thickness:
Two-side welding thickness:
Maximum spot weld nugget:
Operation way:
Inverter frequency:
Welding time:
|
AC 380V 50/60Hz
30KVA
32A
16000A
80KVA
1.0+1.5mm
3.0+3.0+3.0mm
7mm
Electronic timer continuity (Multi-pulsed)
2000Hz
0-700ms(Multi-pulsed)
|
Due
to the continuous innovation and upgrade, our products' features may be
updated.
Please refer to actual products or contact us for more
information.

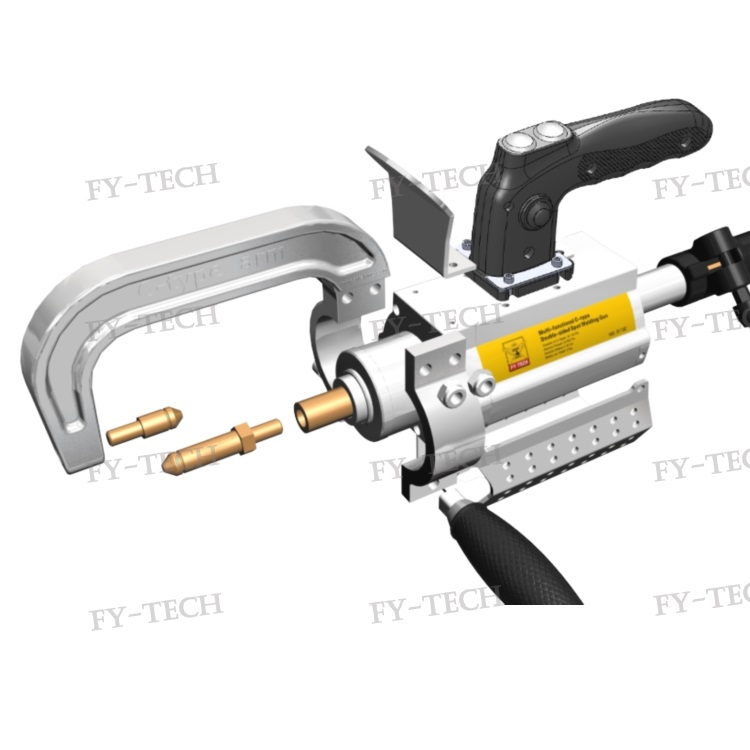

C-type Gun

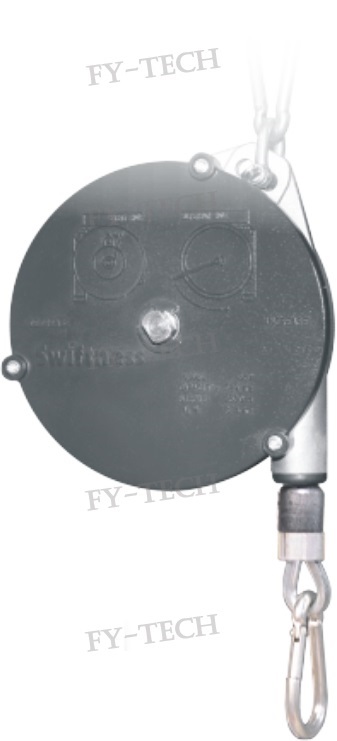

Balancer

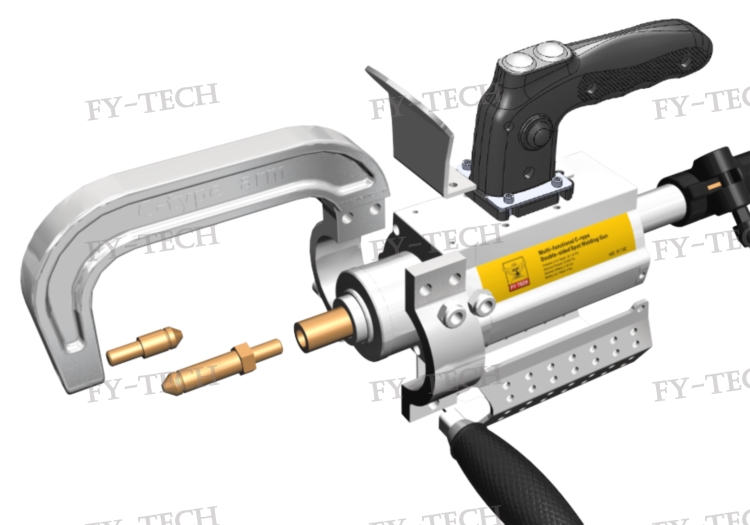

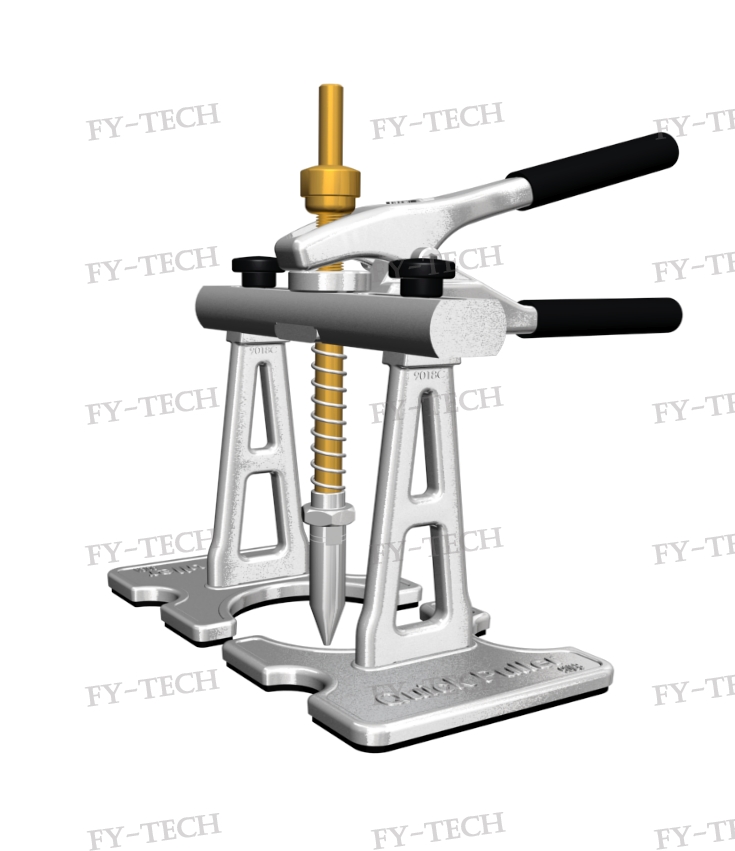

Quick Puller

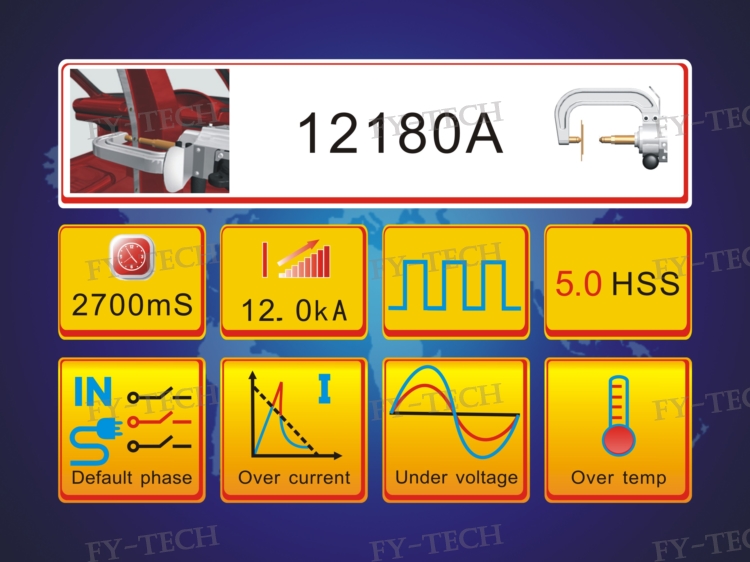

Control Panel
Details
Pictures are for reference only, please subject to our available products.

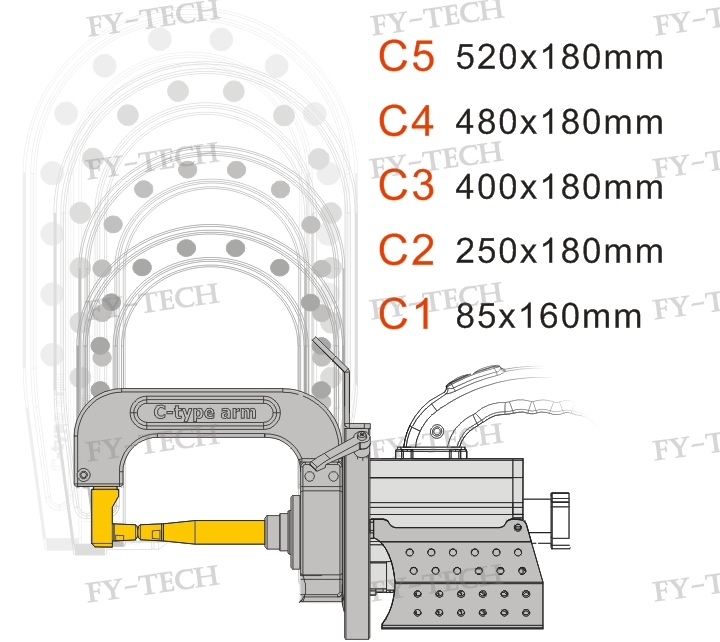

Optional Arms of C-type Gun

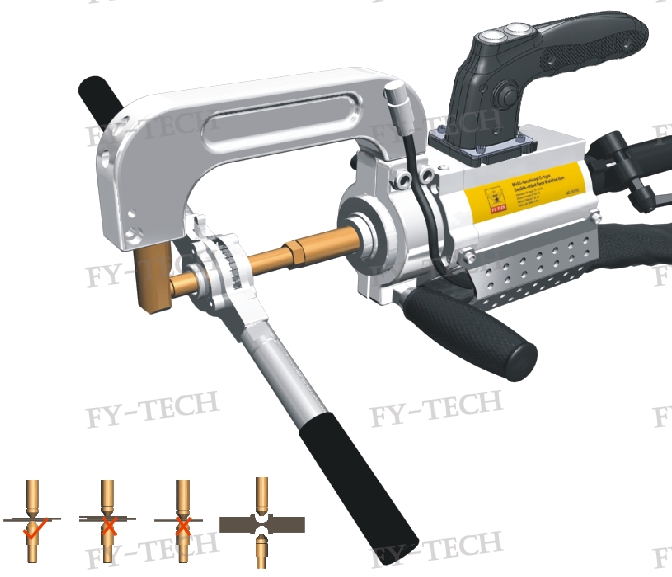

Optional Electrode Sharper

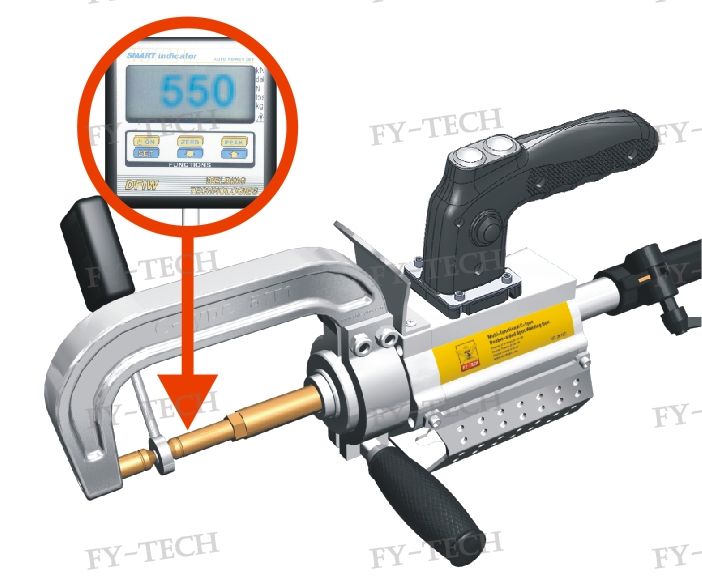

Optional Electrode Pressure Gauge

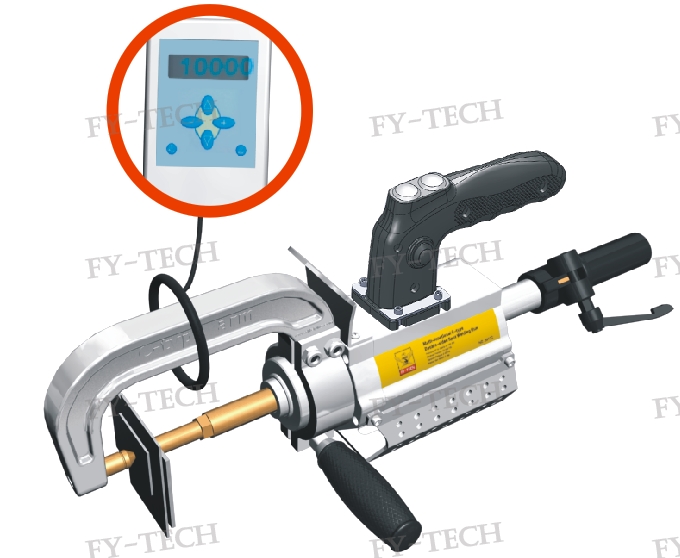

Optional Welding Current Tester
Pictures are for reference only, please subject to our available products.
