※ Microprocessor control system optimizes the welding parameters. User friendly design, all you have to do is select the welding
current corresponding to the workpiece thickness to achieve the best weld quality.
※ Automatic mains voltage monitoring.
※ The welding gun testing function evaluates the usage status of the welder more comprehensively.
※ Overheating protection.
※ High precision time and power adjustment system.
※ Complete with triangle washers for dent pulling.
※ Various welding procedures are available such as shrinking, washer welding, dent pulling, spot welding, flattening, wavy wire welding, stud
welding, OT washer welding, triangle washer welding etc.
※ Digital display.
※ Large pulling hammer and waveform wire welding.
※ With several welding currents to choose from.
Technical Data
Input Voltage:
Input Power:
Input Current:
Max Welding Current:
Output Voltage:
Operation Way:
Weld Timing Range:
Weld Current Regulation:
Packing Dimensions:
Gross Weight:
|
AC 200V or 380V 50/60Hz
16KVA
42A
4000A
1-13V
Continuously
0-99s
ABC
|
Welding Functions
1) Carbon Rod Heating
2) Washer Welding
3) Triangle Washer Spot Hammer Dent Pulling
4) Carbon Rod Stitch Welding
5) Hook Puller Dent Pulling
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.

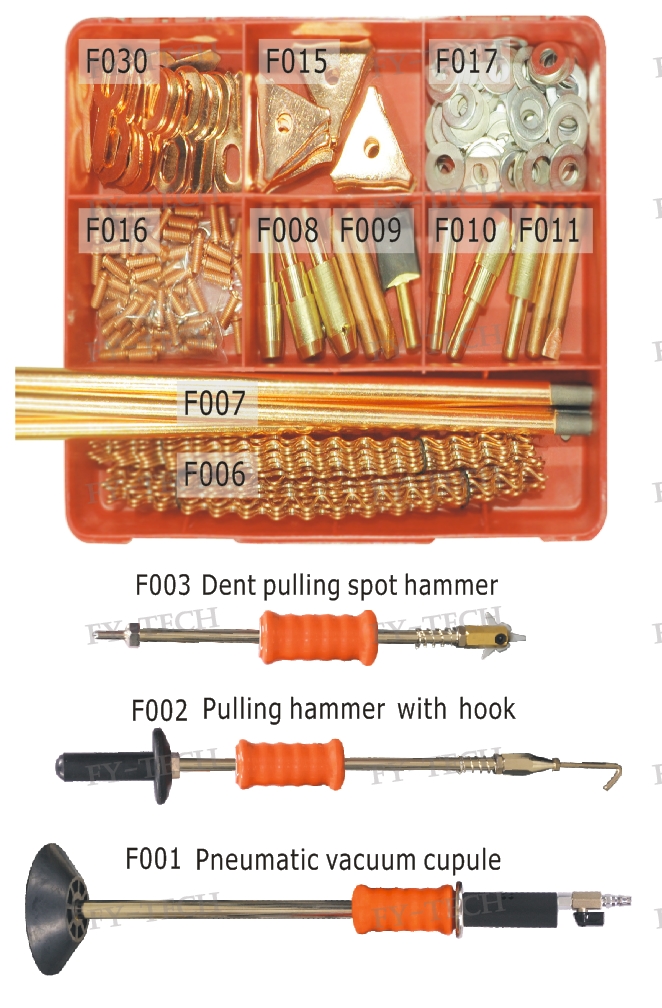

Accessories
|
Accessories
|
Quantity
|
|
F002 Pulling Hammer with Hook
F007 Carbon Rod
F009 Carbon Rod Connector
F011 Washer Connector
F013 Triangle Washer Connector
F015 Triangle Washer
F017 Washer
F018 Earth Clamp
F033 Wrench
|
1 set
3pcs
1pc
1pc
1pc
10pcs
15pcs
1pc
1pc
|

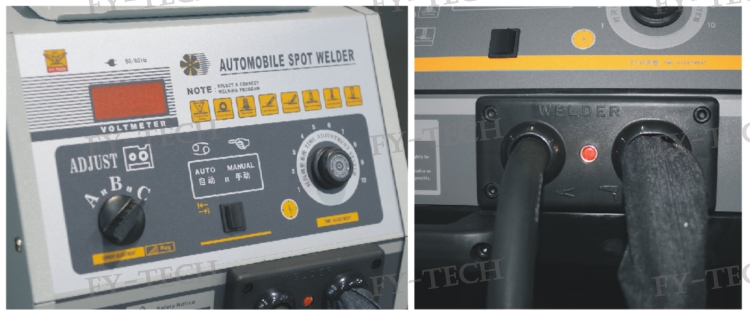

Details
Pictures for reference only, please subject to our available products.
