※ Microprocessor control system optimizes the welding parameters. Due to the adoption of advance digital control technology and user friendly
design, all you have to do is select the welding current corresponding to the workpiece thickness to achieve the best weld quality.
※ Automatic mains voltage monitoring.
※ Digital control system offers greater stability of the output power.
※ The welding gun testing function evaluates the usage status of welder more comprehensively.
※ Overheat protection.
※ High precision time and power adjustment system.
※ Complete with triangle washers for dent pulling.
※ Various welding procedures are available such as shrinking, washer welding, dent pulling, spot welding, flattening, wavy wire welding, stud
welding, OTwasher welding, triangle washer welding etc.
※ Digital display.
※ Large pulling hammer and waveform wire welding.
※ Stepless current regulation.
Technical Data
Input Voltage:
Input Power:
Input Current:
Max Welding Current:
One-side Welding Thickness:
Regulation:
Packing Dimensions:
Gross Weight:
|
AC 220V or 380V 50/60Hz
21KVA
55A
5400A
0.8+1.2mm
Stepless
63×52×87cm
70kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.

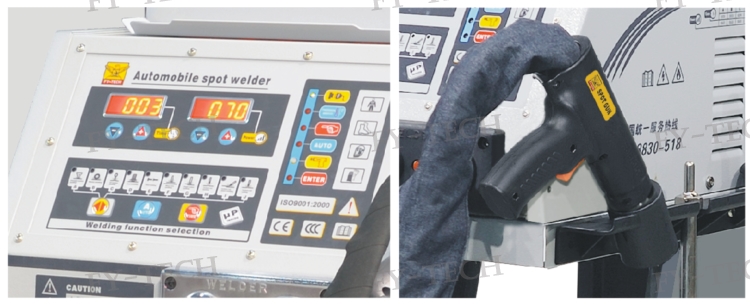

Details

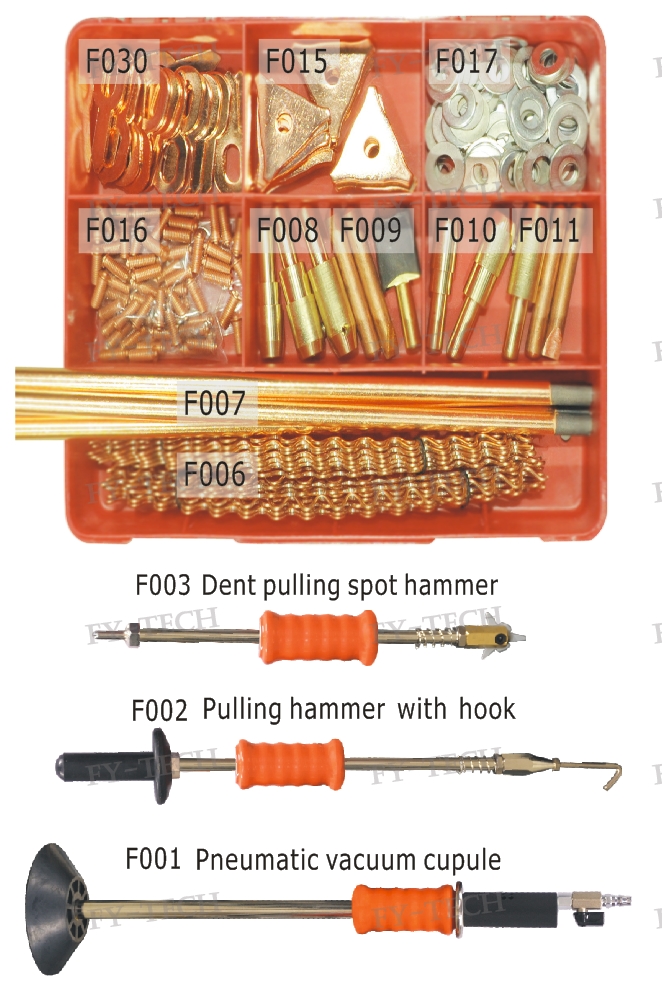

Accessories
|
Accessories
|
Quantity
|
|
F001 Pneumatic Vacuum Cupule
F002 Pulling Hammer with Hook
F003 Dent Pulling Spot Hammer
F006 Wavy Wire
F007 Carbon Rod
F008 Spot Welding Electrode Tip
F009 Carbon Rod Connector
F010 Wavy Wire Electrode Tip
F011 Washer Connector
F014 Claw
F015 Triangle Washer
F016 Stud
F017 ɸ12mm Washer
F017 ɸ10mm Washer
F018 Earth Clamp
F019 Manual Cupule
F030 OT Washer
F033 Wrench
F034 Stud Connector
|
1 set
1 set
1 set
15pcs
5pcs
1pc
1pc
1pc
1pc
1pc
10pcs
30pcs
15pcs
15pcs
1pc
----
20pcs
1pc
1pc
|
Pictures for reference only, please subject to our available products.

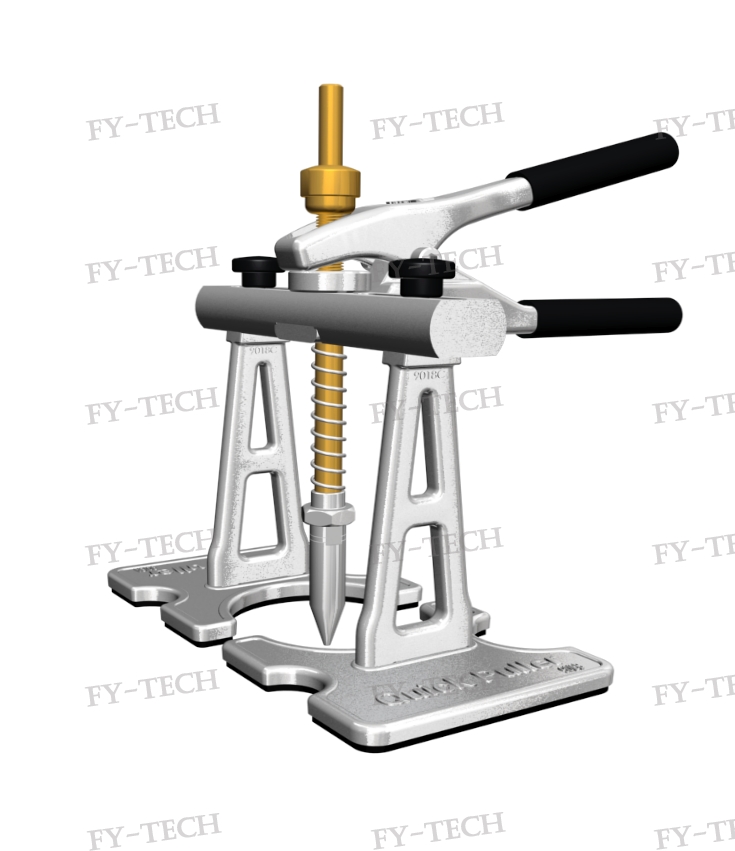

Optional Quick Puller
Pictures for reference only, please subject to our available products.
