※ Microprocessor control system optimizes the welding parameters. Due to the adoption of advanced digital control technology and user
friendly design, all you have to do is to select the welding current corresponding to the workpiece thickness to achieve the best weld quality.
※ Automatic mains voltage monitoring.
※ Digital control system offers greater stability of the output power.
※ The welding gun testing function to evaluate the usage status of the welder more comprehensively.
※ Overheating protection.
※ High precision time and power adjustment system.
※ Designed to repair different kinds of car steels such as conventional steel, stainless steel, etc.
※ Complete with triangle washers for dent pulling.
※ Variety welding procedures are available such as shrinking, washer welding, dent pulling, spot welding, flattening, wavy wire welding, stud
welding, OT washer welding, triangle washer welding etc.
※ Digital display.
※ Large pulling hammer and waveform wire welding.
※ Stepless current regulation.
Technical Data
|
Input Voltage:
Input Power:
Input Current:
Max Welding Current:
Output Voltage:
One-side Welding Thickness:
Operation Way:
Weld Time Range:
Welding Current Regulation:
Dimensions:
Weight:
|
AC 380V 50/60Hz
23KVA
58A
5900A
AC1-13V
0.8+1.2mm
Electronic timer continuously
0-99s
Stepless
71×58×90cm
96kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.
Details
Accessories
Accessories
|
Quality
|
|

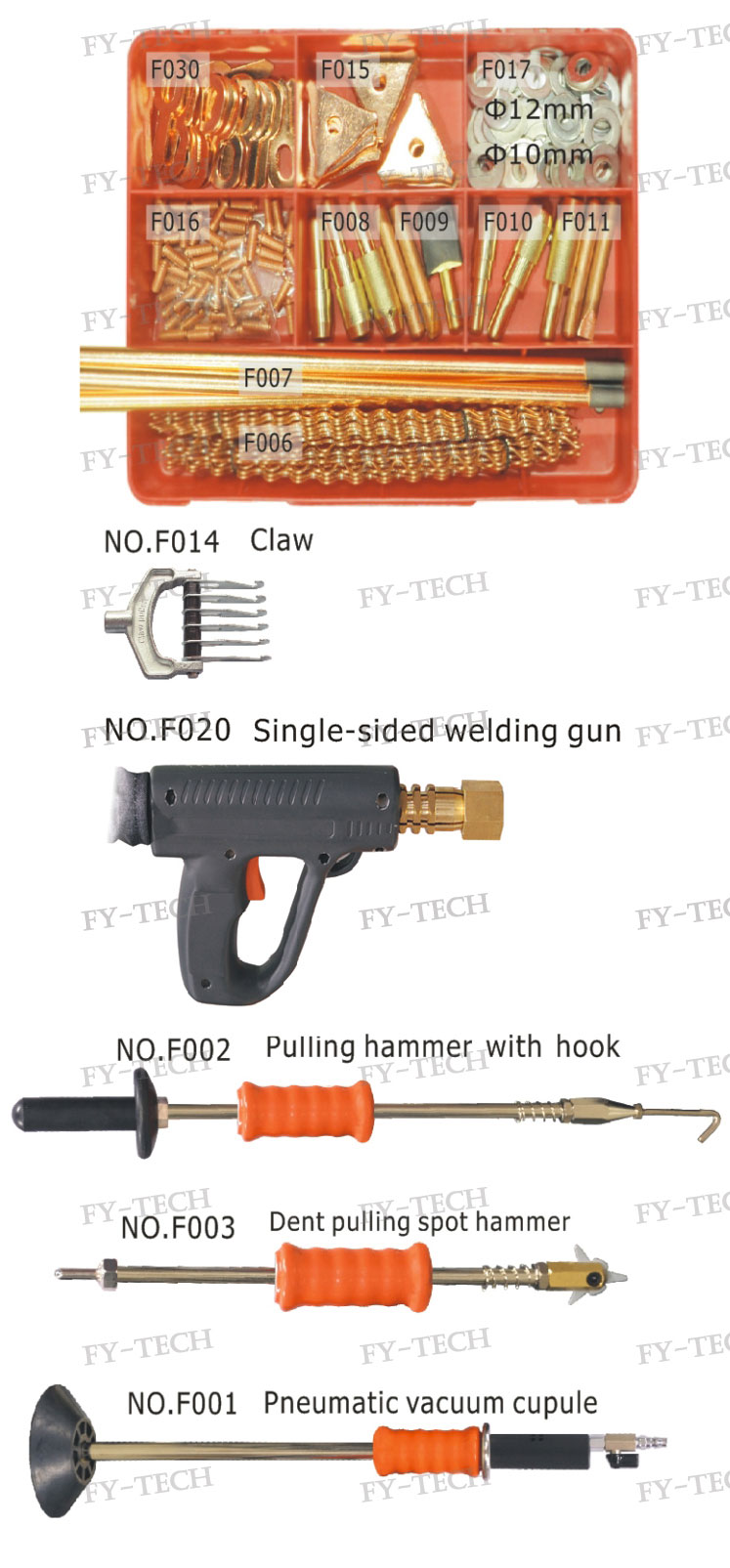

F001 Pneumatic Vacuum Cupule
F002 Pulling Hammer with Hook
F003 Dent Pulling Spot Hammer
F006 Wavy Wire
F007 Carbon Rod
F008 Spot Welding Electrode Tip
F009 Carbon Rod Connector
F010 Wavy Wire Electrode Tip
F011 Washer Connector
F014 Claw
F015 Triangle Washer
F016 Stud
F017 ɸ12mm Washer
F017 ɸ10mm Washer
F030 OT Washer
F034 Stud Connector
|
1 set
1 set
1 set
15pcs
5pcs
1pc
1pc
1pc
1pc
1pc
10pcs
30pcs
15pcs
15pcs
20pcs
1pc
|
Pictures for reference only, please subject to our available products.

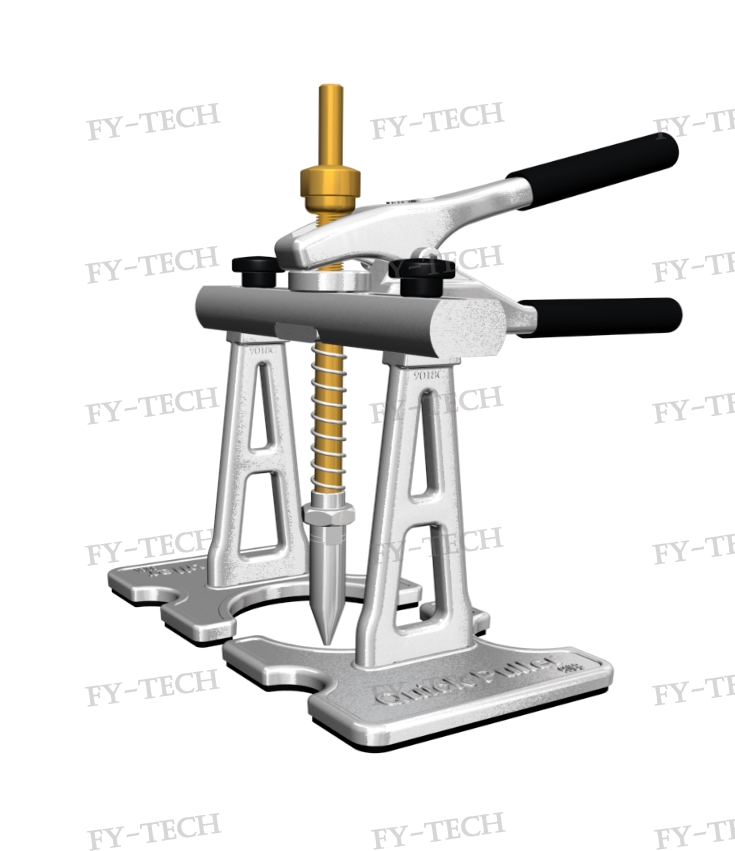

Optional Quick Puller

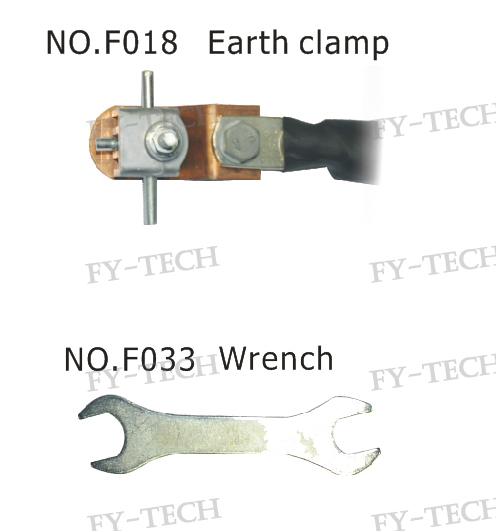

Optional Accessories
Pictures for reference only, please subject to our available products.
