※ Microprocessor control system optimizes the welding parameters. User friendly design, all you have to do is select the welding current
corresponding to the workpiece thickness to achieve the best weld quality.
※ Automatic mains voltage monitoring.
※ The welding gun testing function evaluates the usage status of the welder more comprehensively.
※ Overheating protection.
※ High precision time and power adjustment system.
※ Complete with triangle washers for dent pulling.
※ Various welding procedures are available such as shrinking, washer welding, dent pulling, spot welding, flattening, wavy wire welding, stud
welding, OT washer welding, triangle washer welding etc.
※ Digital display.
※ Large pulling hammer and waveform wire welding.
※ With several welding currents to choose from.
Technical Data
Input voltage:
Input power:
Input current:
Max welding current:
Output voltage:
One-side welding thickness:
Operation way:
Weld timing range:
weld current regulation:
Packing Dimensions:
Gross Weight:
|
AC 200V or 380V 50/60Hz
20KVA
51A
5200A
1-13V
0.8+1.0mm
continuously
0-99s
ABC
63×52×89cm
76kg
|
Welding Functions
|
1) Carbon Rod Heating
2) Washer Welding
3) Single-sided Spot Welding
4) OT Washer Welding
5) Sheet Metal Flattening
6) Claw Puller Dent Pulling
7) Triangle Washer Spot Hammer Dent Pulling
8) Stud Welding
9) Pneumatic / Manual Vacuum Cupule Dent Pulling
10) Carbon Rod Stitch Welding
11) Hook Puller Dent Pulling
12) Wavy Wire Welding
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.

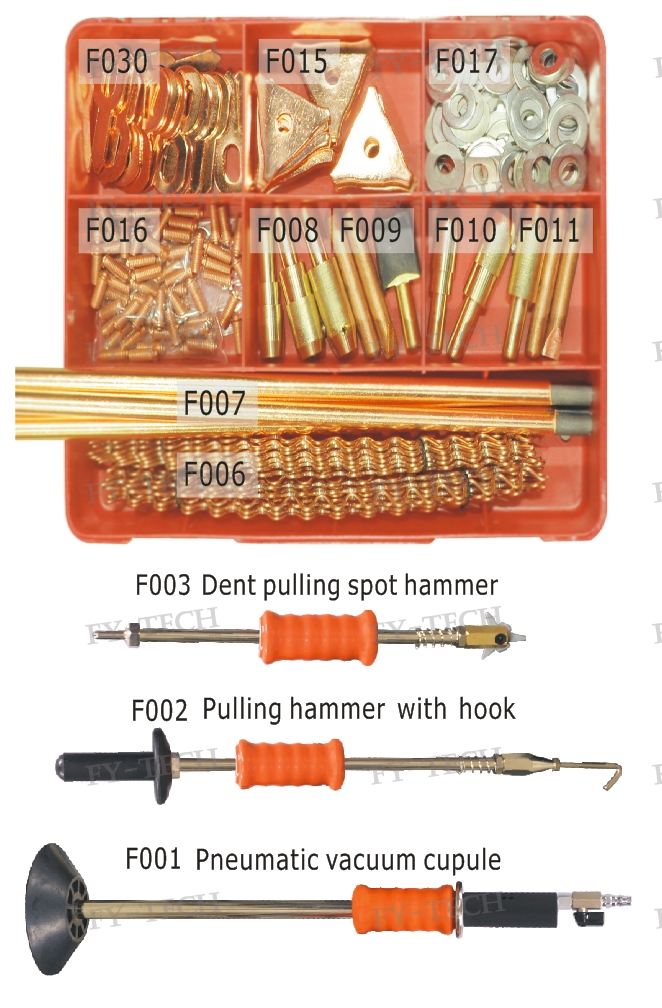

Accessories
|
Accessories
|
Quantity
|
|
F002 Pulling Hammer with Hook
F003 Dent Pulling Spot Hammer
F006 Wavy Wire
F007 Carbon Rod
F008 Spot Welding Electrode Tip
F009 Carbon Rod Connector
F010 Wavy Wire Electrode Tip
F011 Washer Connector
F014 Claw
F015 Triangle Washer
F016 Stud
F017 ɸ12mm Washer
F018 Earth Clamp
F019 Manual Cupule
F030 OT Washer
F033 Wrench
F034 Stud Connector
|
1 set
1 set
1 set
15pcs
3pcs
1pc
1pc
1pc
1pc
1pc
10pcs
30pcs
15pcs
1pc
1pc
20pcs
1pc
1pc
|

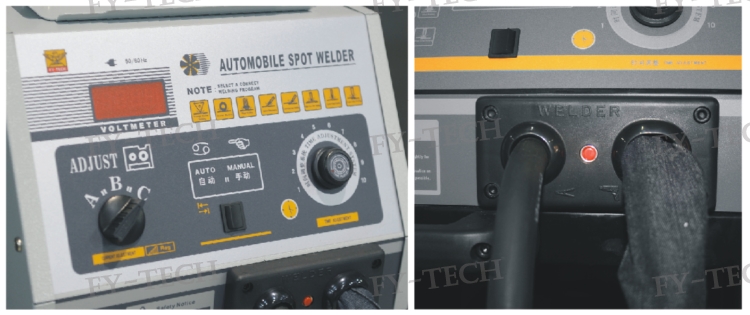

Details
Pictures for reference only, please subject to our available products.

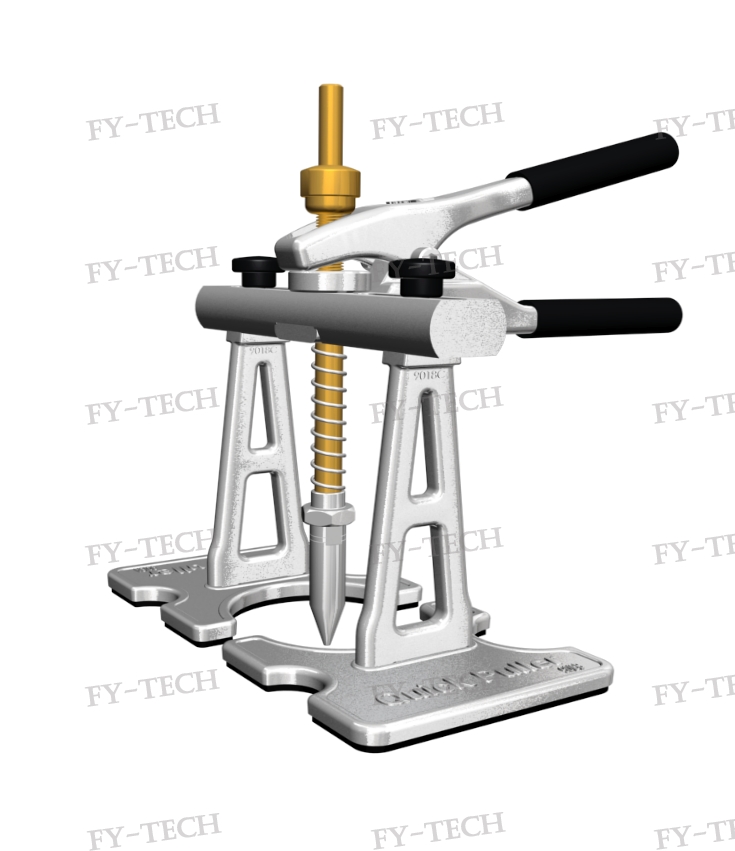

Optional Quick Puller
Pictures for reference only, please subject to our available products.
