※ IGBT inverter pulsed and soft switching control technology allows for energy efficient steady welding with fast arc ignition.
aterials' mechanical properties are maintained with less welding deformation and spatter. User can quickly and easily weld
car bodies with various materials and achieve a perfect performance. There is also less post welding treatment work and less welding sparks.
※ With industrialized design scheme, the welding parameters are provided automatically to match the workpiece material and thickness.
The users only need to set the material and thickness. Complete with the international advanced DSP microprocessor chip.
Automatic memory function allows the users to save the welding parameters, safe and efficient.
Technical Data
|
Input Voltage
Rated Input Power
Rated Input Current
Min ~ Max Output Current
Duty Cycle
No-load Output Voltage
Efficiency
Power Factor
Insulation Grade
Steel Wire Diameter
Alu Alloy Wire Diameter
Copper Alloy Wire Diameter
Wire Feeder
Size
Weight
|
400V or 230V
9.5KVA
14A
35A/15.7V-300A/31V
220A/100%-300A/65%
60V
≥90％
≥0.95
F
Φ0.6-1.2mm
Φ1.0-1.2mm
Φ0.6-1.4 mm
Four-roll drive
106x50x113cm
85kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.
Optional Accessories

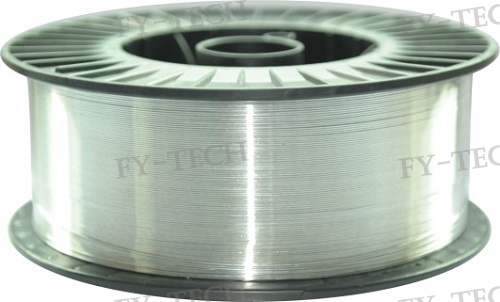

1) C035 Alu Alloy Wire
2) C036 Steel Wire

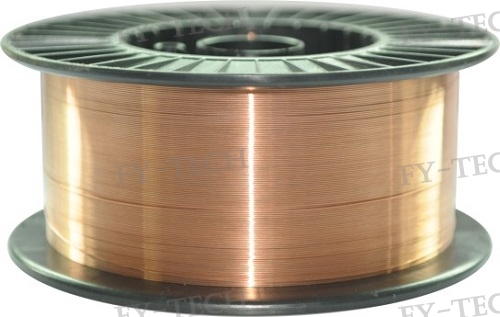

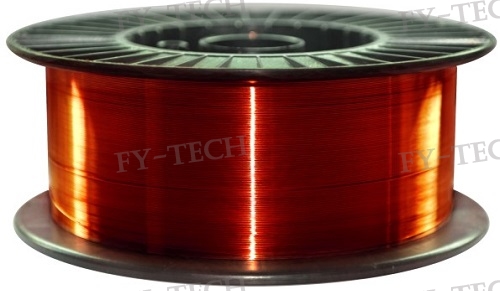

3) C037 Copper Alloy Wire
4) C033F 15AK Alu Welding Torch

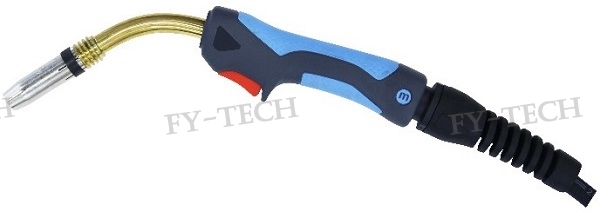

5) C007D 15AK, 24AK or 36AK Welding Torch

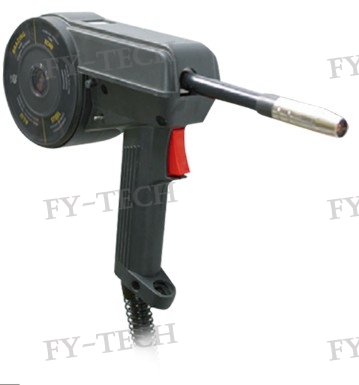

6) C034 Spool Gun
Pictures are for reference only, please subject to our available products.
