※ With a multifunctional color LCD panel and the most advanced DSP control technology. It features one button intelligent design to
automatically store equipment information and to select the welding modes for various materials like steel, aluminium,
stainless steel, copper and nickel. The user can store the welding parameters easily and safely.
※ With a world famous brand of welding power supply, IGBT inverter pulsed technology and soft switching control technology. Unit has high
protectiveness, extensive applicability and a world class welding performance.
※ Designed with fender panel for gas cylinder to fix onto the machine.
※ With a high quality welding gun, a durable protective cover and specially designed gun holder.
※ IGBT inverter pulsed and soft switching control technology allows for energy efficient steady welding with fast arc ignition. Materials'
mechanical properties are maintained with less welding deformation and spatter. User can quickly and easily weld car bodies
with various materials and achieve a perfect performance. There is also less post welding treatment work and less welding sparks are created.
Technical Data
|
Input Voltage
Rated Input Power
Rated Input Current
Min ~ Max Output Current
Duty Cycle
No-load Output Voltage
Efficiency
Power Factor
Insulation Grade
Steel Wire Diameter
Wire Feeder
Size
Weight
|
400 or 230V
8.0KVA
12A
35A/15.7V~260A/26V
200A/100%-260A/65%
50V
≥90%
≥0.95
F
Ф0.6-1.2mm
Two-roll Drive
930x350x830mm
86kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.
Optional Accessories

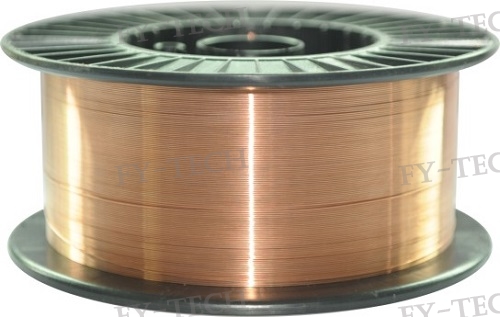

1) C036 Steel Wire
2) C037 Copper Alloy Wire

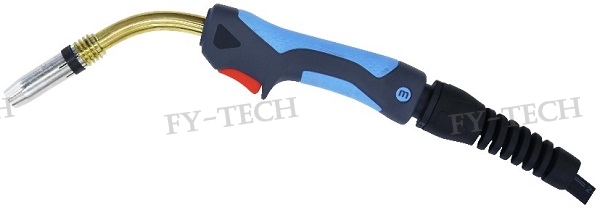

3) C007D 15AK, 24AK or 36AK Welding Torch

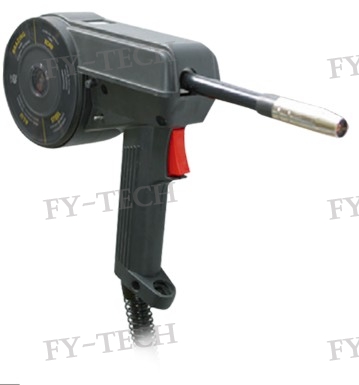

4) C034 Spool Gun
Pictures are for reference only, please subject to our available products.
