※ IGBT inverter technology.
※ Compact size, light weight, high efficiency and energy saving.
※ ABS plastic enclosure with excellent insulation performance and corrosion resistance.
※ HF arc starting, ignition reliable, arc force adjustable.
※ Stable arc, little spatter.
※ Good welding quality, deep welding penetration, high strength.
※ Overcurrent and overvoltage protection.
※ Long weld times available, stable performance, voltage auto compensation function.
※ Suitable for welding all kinds of acid and basic electrodes.
※ Support down hill direction welding with cellulose electrode.
※ TIG/MMA available.
※ Built-in over current and overheat protections ensure users' safety.
Technical Data
Input Voltage ±10%
Rate Input Power
No-load Voltage
Output Current Range
Rated Output Voltage
Duty Cycle
Efficiency
Power Factor
Insulation Grade
Protection Grade
Arc Starting
No-load Loss
Welding Thickness
Overall Dimension
Weight
|
220V 50/60Hz
29A
54V
12-180A
17.2V
35%
80%
0.93COSφ
B
IP23
HF
60W
0.3-5mm
410x165x250mm
7.5kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.
Details

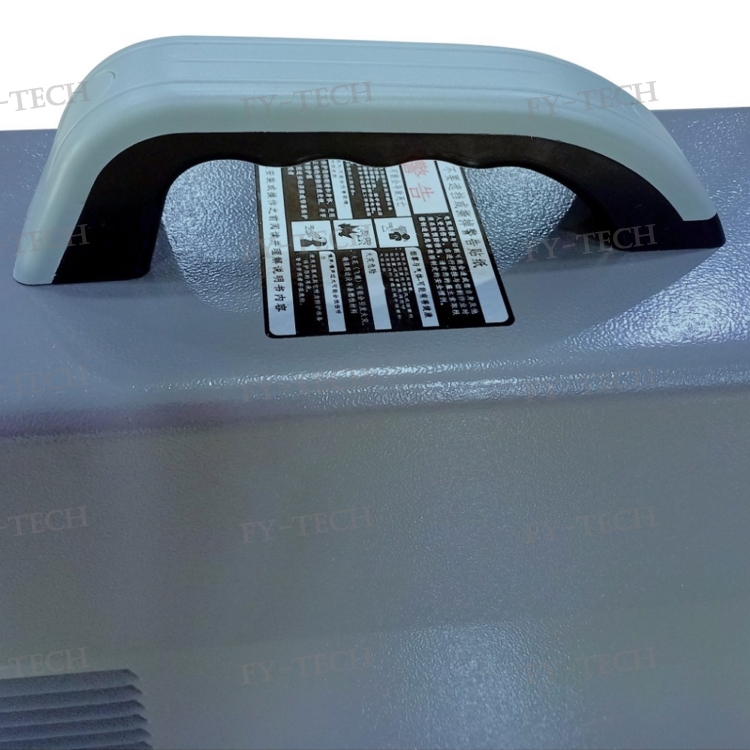

1) Handle

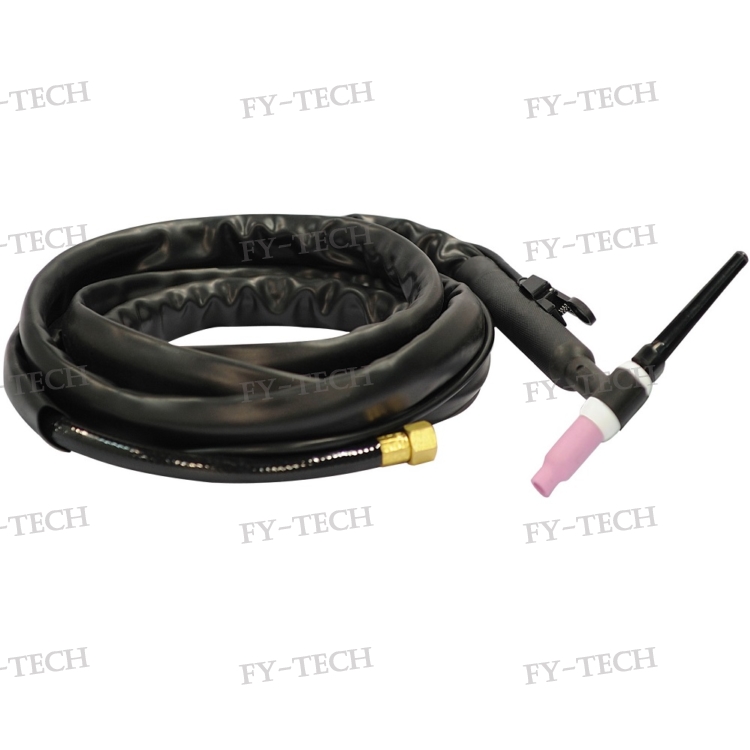

2) TIG Welding Gun
Pictures are for reference only, please subject to our available products.
