※ Designed to spot weld different types of steel such as double-layer and multi-layer high strength steel.
※ Double-sided C-type gun with double-piston design allows 360° rotation in stable pressure.
※ Automatic mains voltage monitoring, open-phase protection for input voltage.
※ Precise overheating protection.
※ Automatic current testing system with precision to ensure the stability of related parameters.
※ Precision overcurrenting protection to ensure safety in usage.
※ Single-sided and double-sided spot welding.
※ Various welding procedures are available such as shrinking, washer welding, dent pulling spot welding, flattening,
waveform wire welding, stud welding, OT washer welding, triangle washer welding etc.
※ Complete with air filter and pressure regulator.
※ Uniquely designed gun cable support arm allows flexible movement with 360° rotation.
※ Branded original IGBT inverter imported from Europe.
※ Branded amorphous high frequency relay.
※ Fully automatic water cooling system.
※ Digital graphic LCD monitor.
※ Large pulling hammer for dent pulling.
※ Stepless current regulation.

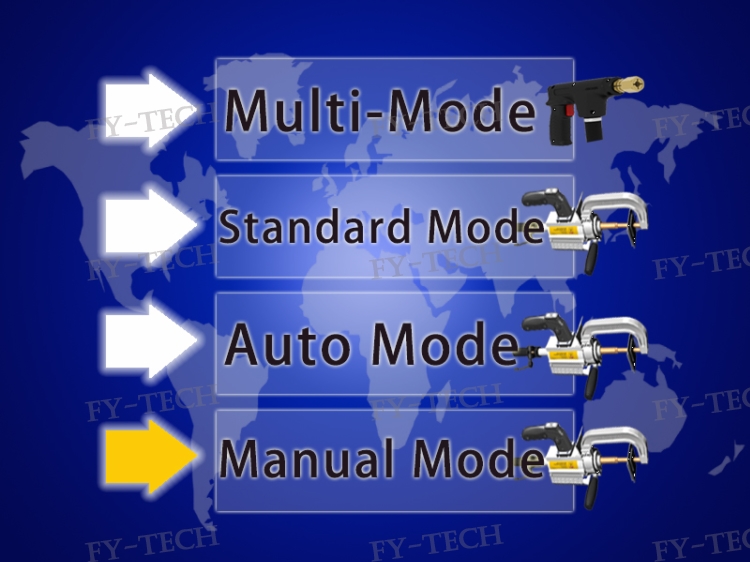

※ With single pulse and multi pulse modes applied to hundreds of welding processes.
※ Electrodes of C-type gun can be step-by-step opened and quadratic rapid closed.
Technical Data
Input voltage:
Input power:
IRMS:
IMAX:
One-side welding thickness:
Two-side welding thickness:
Air supply pressure:
Inverter frequency:
Operation way:
Welding time:
Dimensions:
Weight:
|
AC400V 50/60Hz (±10%)
30KVA
38A
17000A
1.0+1.5mm
3.0+3.0+3.0mm
2-10kg
2000Hz
Electronic timer continuously
0-700ms (pulsed)
800×680×2030mm
130kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.

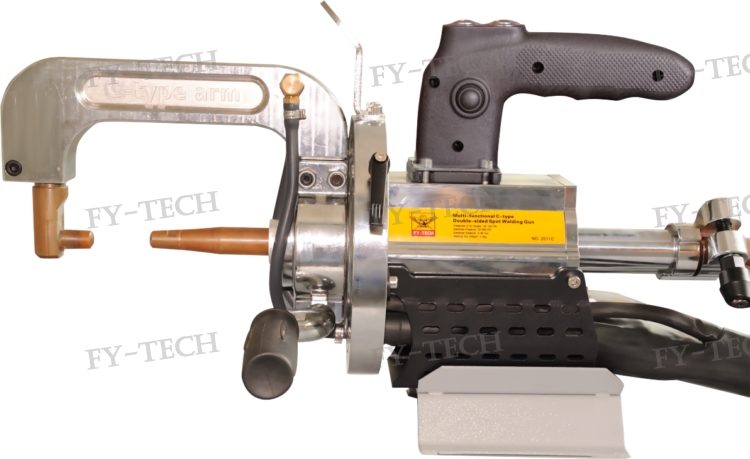

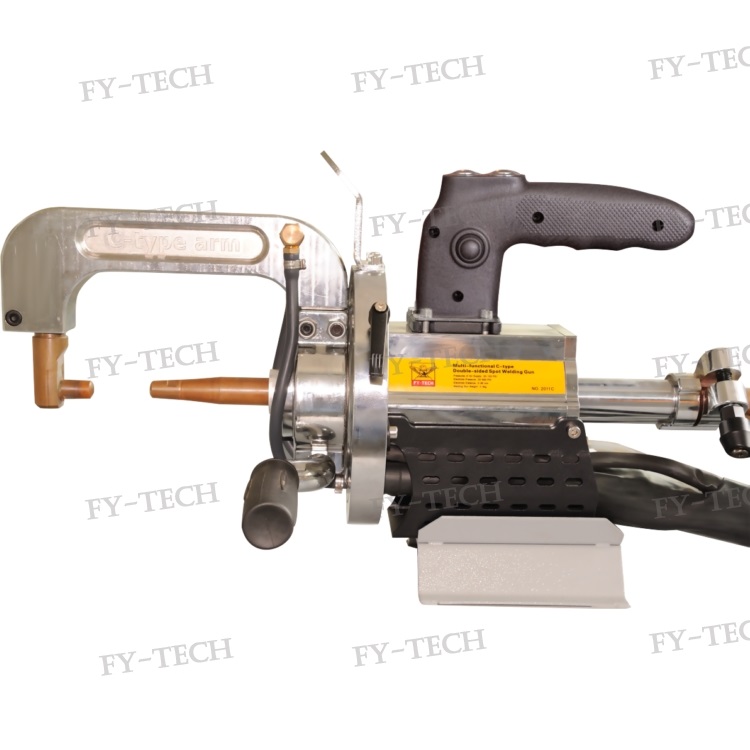

Water-cooled C-type Gun

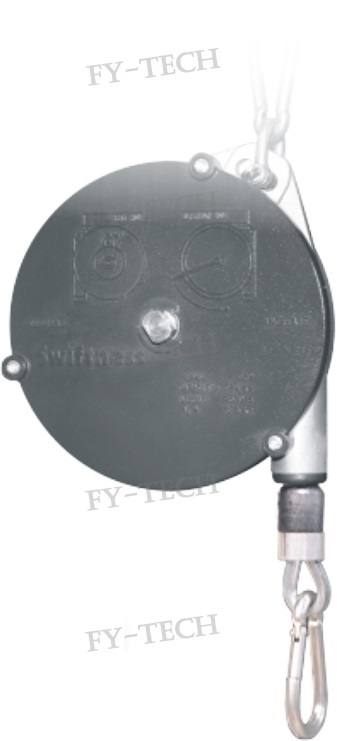

Balancer

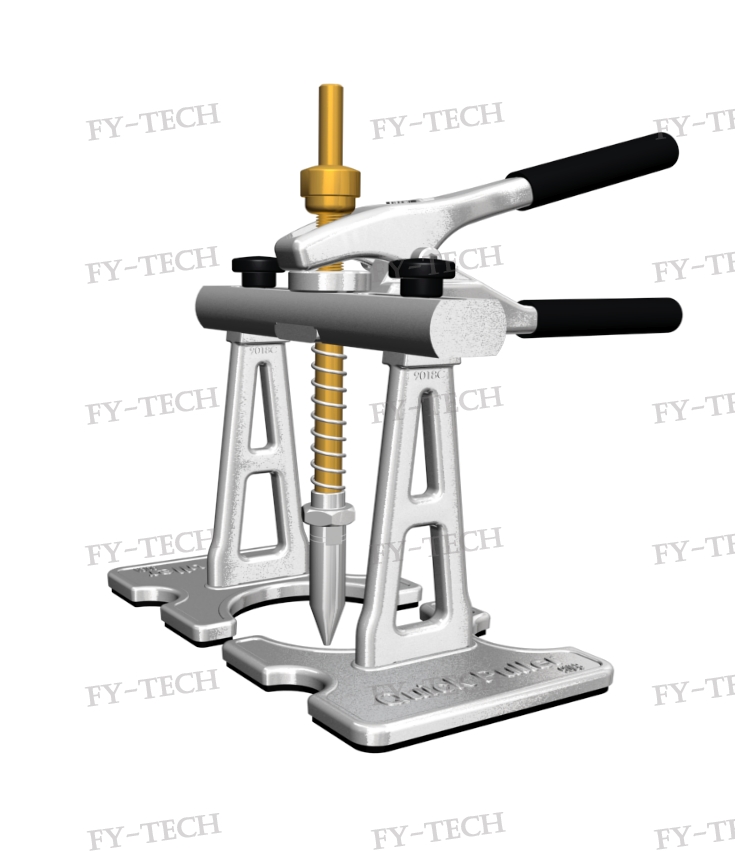

Quick Puller
Control Panel
Details
Pictures are for reference only, please subject to our available products.

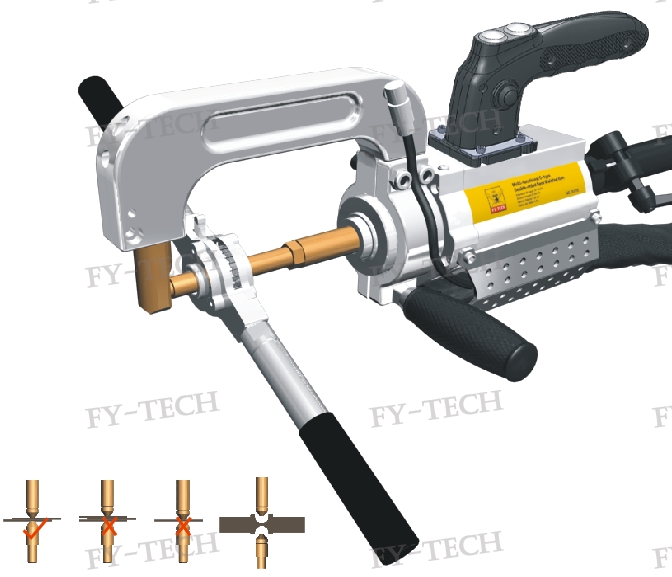

Optional Electrode Sharper

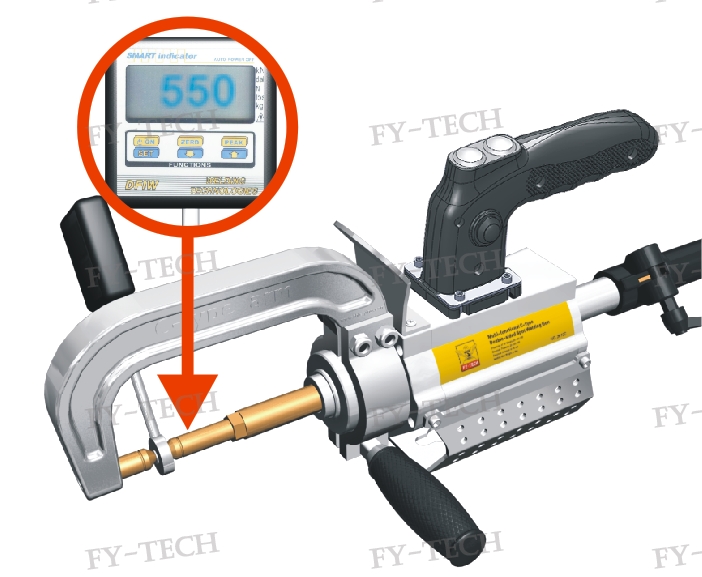

Optional Electrode Pressure Gauge

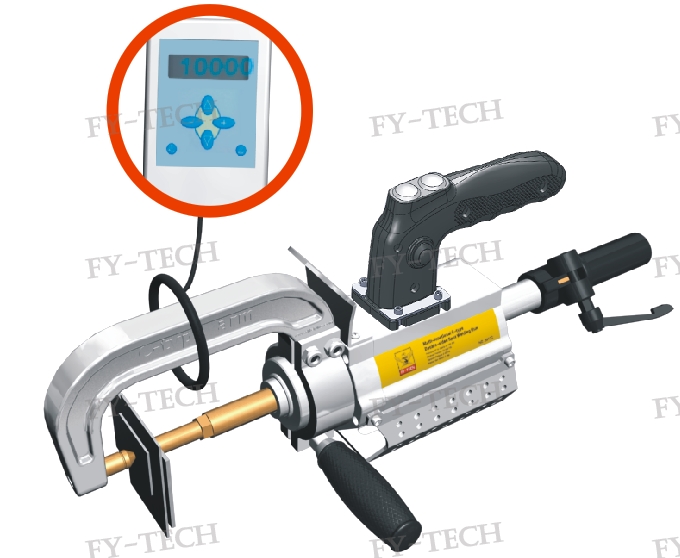

Optional Welding Current Tester
Pictures are for reference only, please subject to our available products.
