※ Designed to spot weld different types of steel such as double-layer and multi-layer high strength steel.
※ Double-sided C-type gun with double-piston design allows 360° rotation in stable pressure.
※ Automatic mains voltage monitoring, open-phase protection for input voltage.
※ Precise overheating protection.
※ Automatic current testing system with precision to ensure the stability of related parameters.
※ Precision overcurrenting protection to ensure safety in usage.

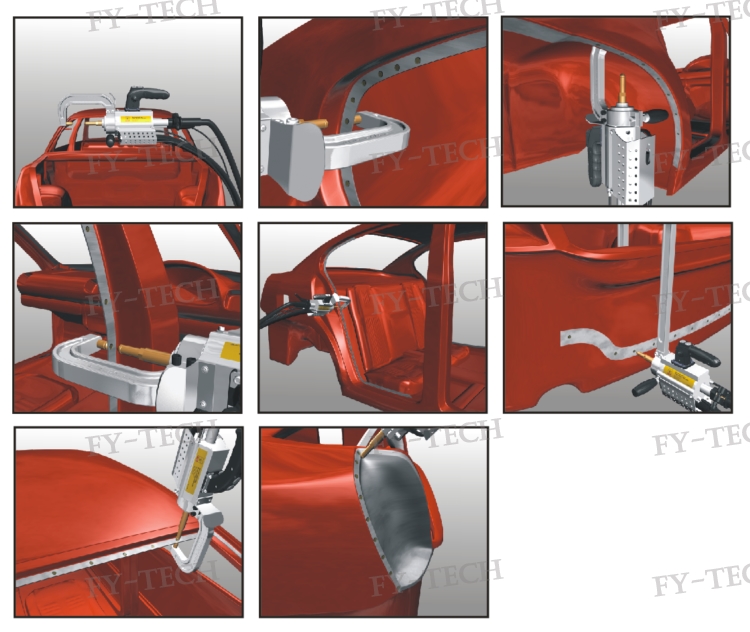

※ Single-sided and double-sided spot welding.
※ Various welding procedures are available such as shrinking, washer welding, dent pulling spot welding, flattening,
waveform wire welding, stud welding, OT washer welding, triangle washer welding etc.
※ Complete with air filter and pressure regulator.
※ Uniquely designed gun cable support arm allows flexible movement with 360° rotation.
※ Branded original IGBT inverter imported from Europe.
※ Branded amorphous high frequency relay.
※ Fully automatic water cooling system.
※ Digital graphic LCD monitor.
※ Large pulling hammer for dent pulling.
※ Stepless current regulation.
※ With single pulse and multi pulse modes applied to hundreds of welding processes.
※ Electrodes of C-type gun can be step-by-step opened and quadratic rapid closed.
Technical Data
Input voltage:
Input power:
IRMS
IMAX
One-side welding thickness:
Two-side welding thickness:
Air supply pressure:
Inverter frequency:
Operation way:
Welding time:
Dimensions:
Weight:
|
AC400V 50/60Hz
29KVA
36A
16000A
1.0+1.5mm
3.0+3.0+3.0mm
2-10kg
2000Hz
Electronic timer continuously
0-700ms (pulsed)
800×680×2030mm
128kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.

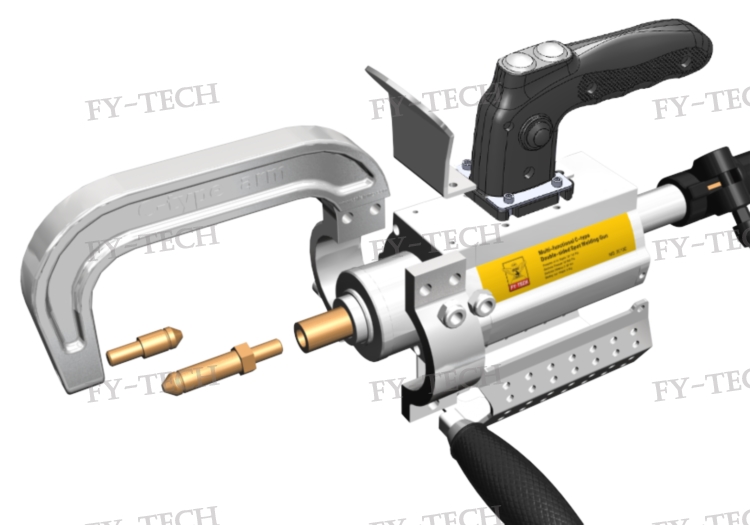

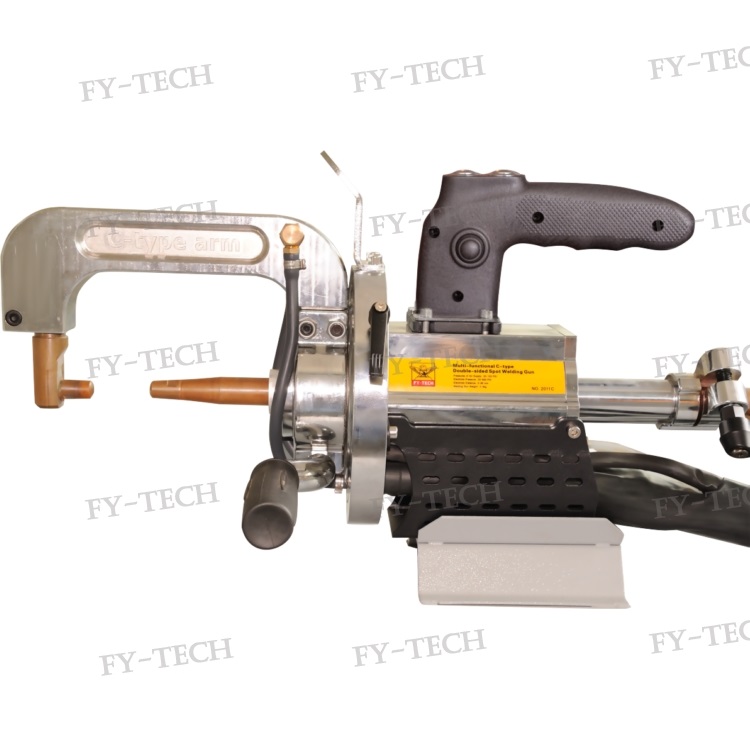

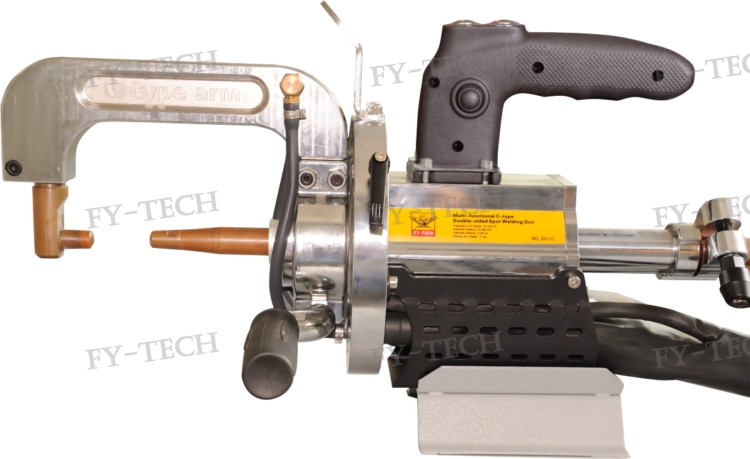

Water-cooled C-type Gun
Molded aluminium alloy C-type gun, light weight and durable.

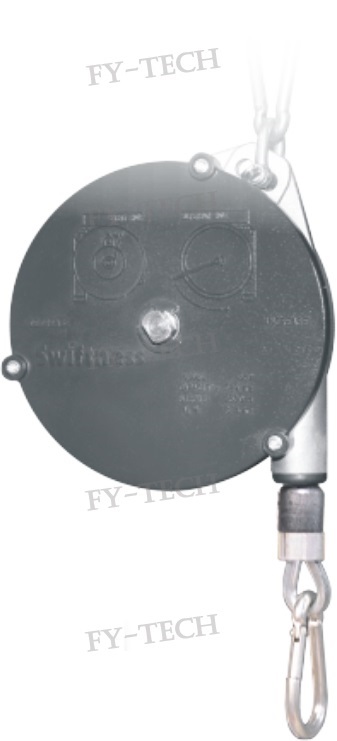

Balancer

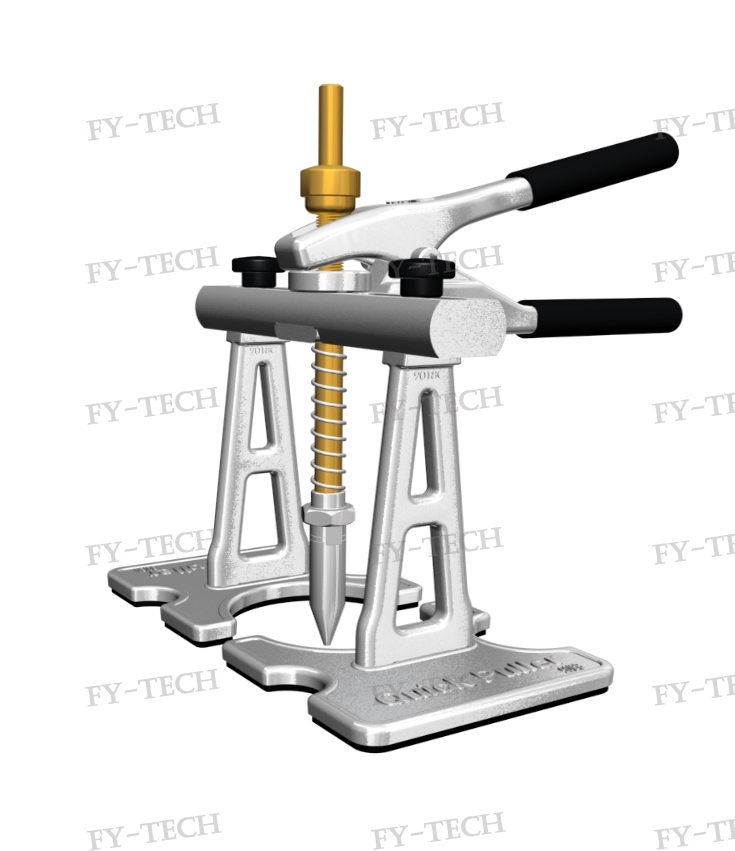

Quick Puller

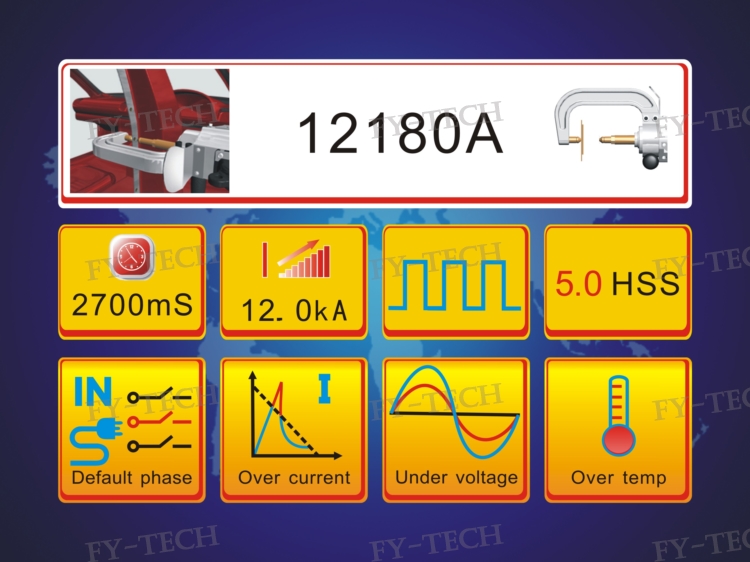

Control Panel
Details
Pictures are for reference only, please subject to our available products.

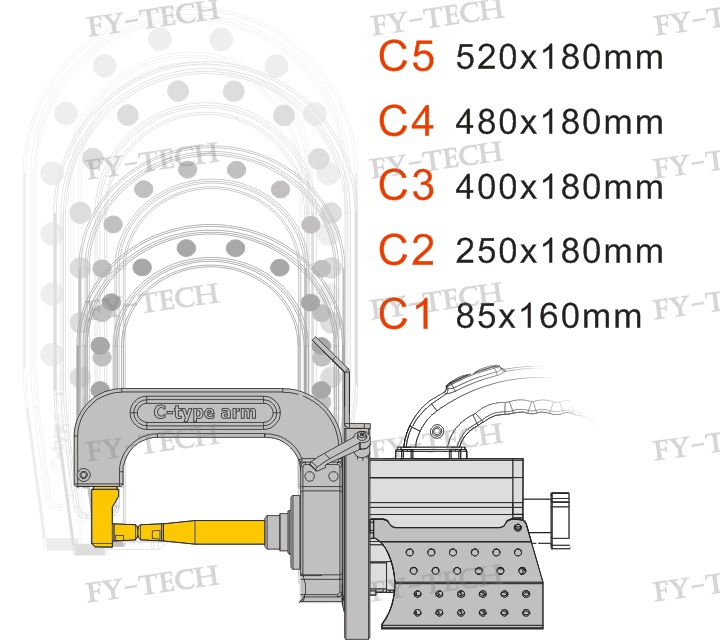

Optional Arms of C-type Gun
Pictures are for reference only, please subject to our available products.
