This tester is capable of AC, DC voltage testing, continuity, diode testing,
resistance measurement, unipolar voltage detection, phase rotation testing,
lighting functions, and so on.
Voltage Range: 6~690V AC/DC
Single pole Voltage : 100~690V, Frequency Range:45~65Hz
Resistance: Range :0~2kΩ, Accuracy:±(5%rdg+10d)
Continuity Test : Test Current:＜200kΩ, Threshold:＜20μA
Rotary Field Indication : Voltage:100~690V, Frequency:50Hz/60Hz
Temperature: -10 ~ 55℃
Relative Humidity: <85％
Altitude :＜2000m
Over voltage Class : CAT lll 1000V; CAT IV 600V
IP Degree : Ip64
Power supply: 1 x 9V 6F22 battery ( not included )
Instructions

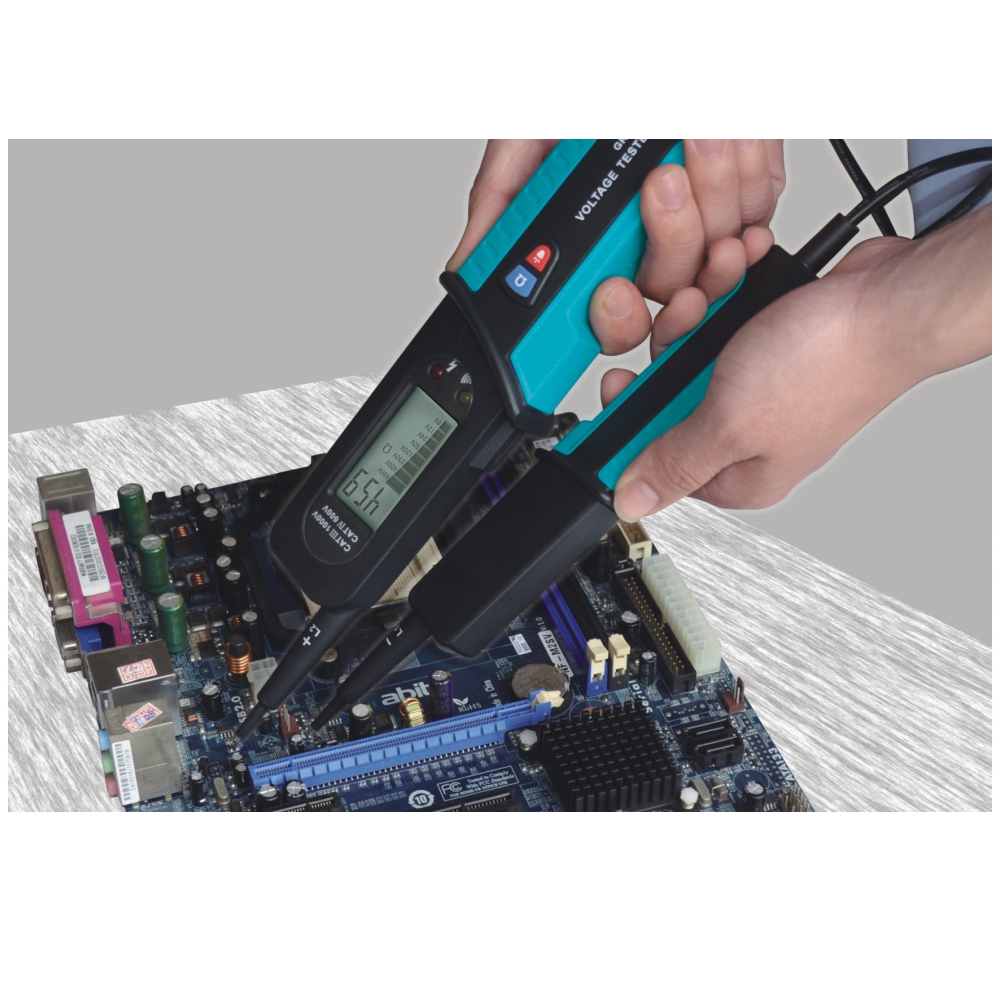

Connect the L1 probe and L2 probe to the load to be measured.

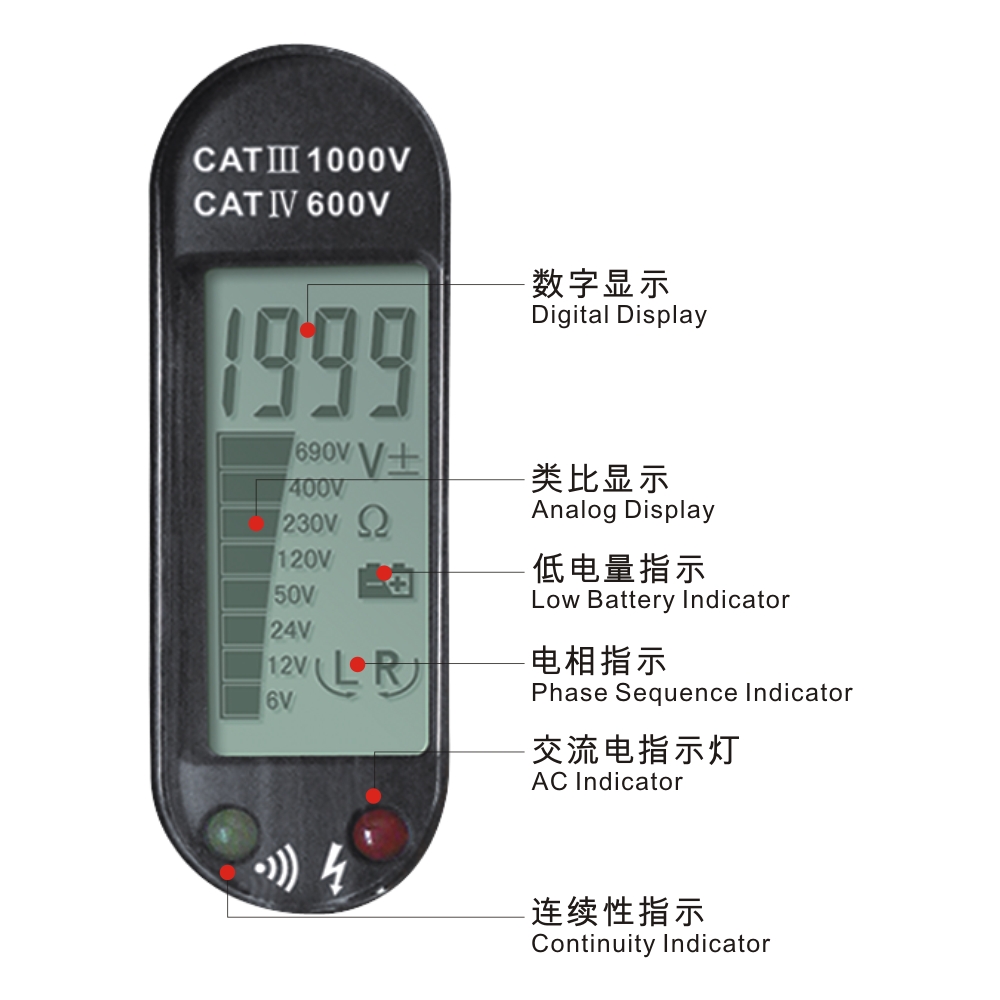

Press the "Ω" button once, wait for the reading to stabilize, then read the
"measurement values " from the digit display.
