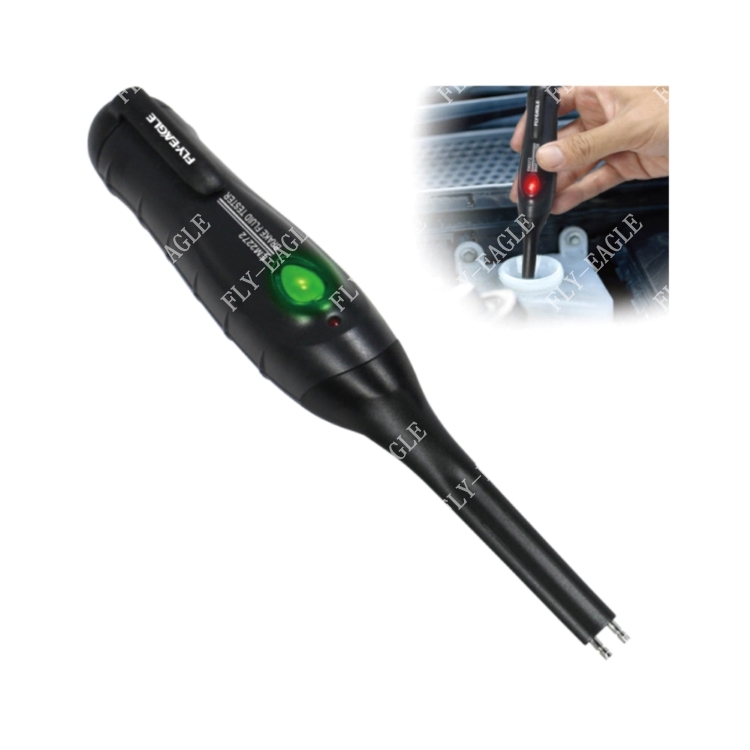

ø Apply to test the DOT 3, DOT4, and DOT 5.1 brake fluid.
ø This unit can be used to test the quality of brake fluid.
ø It can indicate whether the brake fluid under test can still be used safely
or needs to be replaced. It is a very useful tool for ensuring good
braking effect and driving safety.
ø Quick and easy way to test for moisture content in the Brake fluid. The
moisture content contain in the Brake fluid Measurement range is from
0-3%
Usage method
ø Clean the test head and two electrode and make it dry.
ø Press the test button on the top of the tester, the green LED light is on,
indicating that the power is turned on and the battery is fully charged.
ø Press and hold down the "On" button, insert the test head into the brake
fluid about 1cm deep after 3 seconds, then read the LED indication:

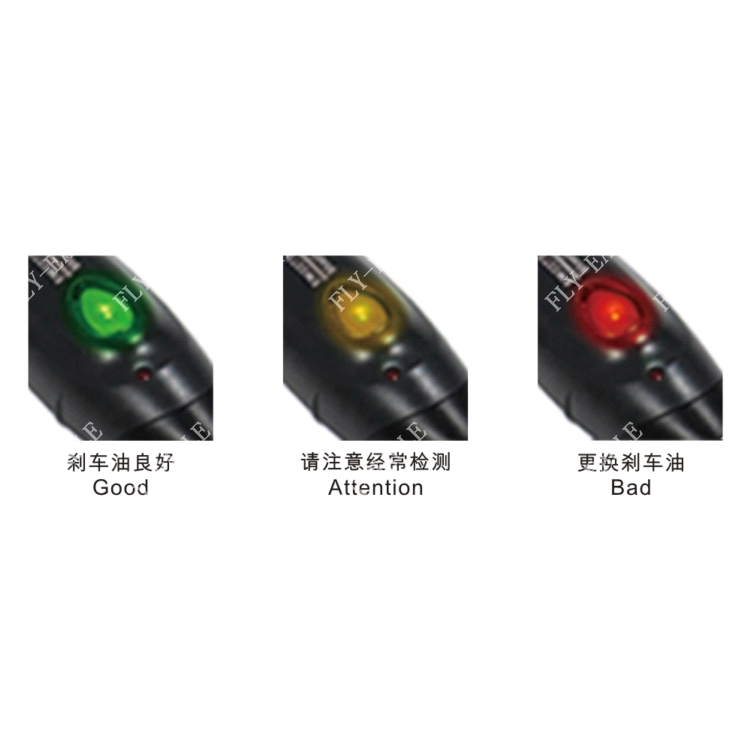

Green : If the green test indicator LED lights up, the moisture content in
the brake fluid is less than 1.5% and the brake fluid quality is good.
Yellow : If the yellow test indicator LED lights up, the moisture content
in the brake fluid is between 1.5% and 3%. The brake fluid still can be
used, but if you want to continue using the brake fluid, you must often
check the brake fluid.
Red : if the red test indicator LED lights up, the moisture content in the
brake fluid more than 3% and the brake fluid must be changed
immediately.
ø After the test is completed, please clean and dry the test probe and
electrode and save the tester properly.
Note: When the test button is pressed, if the red LED light flashes, it's
mean the battery is low. Should be replaced immediately.
