ø Can be used as multimeter, measure DC voltage, DC current,
resistance, diode, continuity, dwell, engine tach, temperature, battery,
frequency, duty cycle.
ø Diagnosis of automotive troubles, including fuse, switch, solenoid or
relay, starting or charging system, battery power consumption, trigger
voltage battery load, voltage drop, charging system voltage, engine
sensor.
ø Stable performance, high precision, large testing range.
ø Use anti-slip sticky plastics material, it has a good sense of grasp.
ø Unique design, easy to use.
Technical data
Dwell Angle: 3CYL/4CYL/5CYL/6CYL/8CYL
(120°/90°/72°/60°/45°)
Tacho: 250~40kRMP, Highest Resolution: 1RMP
Battery range:12V/24V
Duty Cycle:5%-95%
Temperature Range: -20~1000℃
DC voltage range: 20V/35V
DC current range: 10A
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/20MΩ
Frequency:20kHz
Diode: Open circuit voltage approx. 2.8V
Circuit Disconnect: The measured resistor is less than 30 Omega buzzer
ringing
Power supply: 1 x 9V 6F22 battery ( not included )

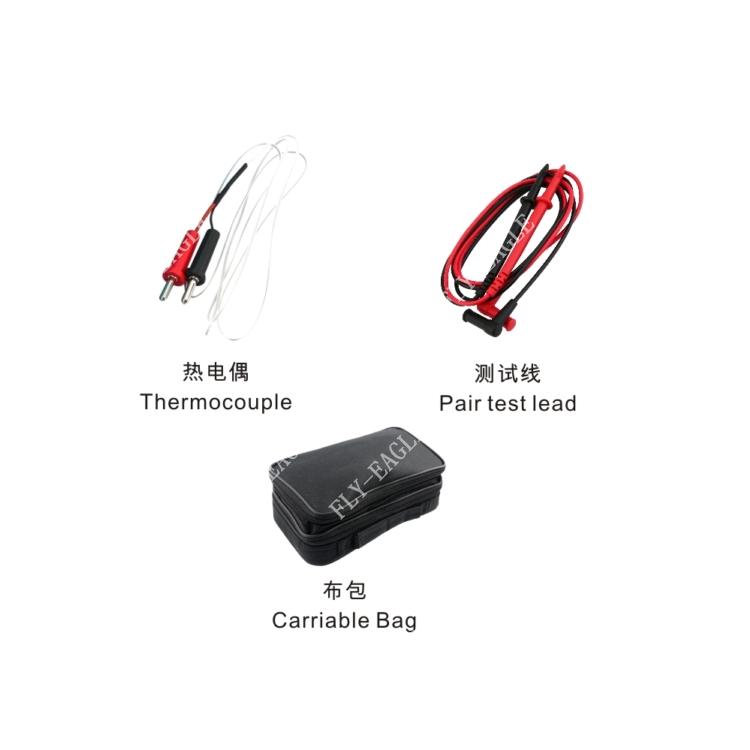

Accessories
Carriable Bag, Pair test lead ,Thermocouple
