※ With leading international inverter technology. Microprocessor control system optimizes the welding parameters. Due to the adoption of
advanced digital control technology and user friendly design, all you have to do is select the welding current corresponding to the workpiece
thickness to achieve the best weld quality.
※ High precision power control system.
※ Complete with two and four-kickstand crossbar lifters to accommodate any repair task for the whole aluminium car body.
※ Suitable for dent pulling of aluminium and different kinds of car steels.
※ High welding strength without damage to the metallic coatings and paint surfaces on the back.
※ Digital display, simple to operate and easy to use.
※ Able to weld 3mm-8mm aluminium stud bolts, steel stud bolts and aluminium washers.
※ Additional aluminium MIG welder is available as an option.
Technical Data
1) FY-65L
Input voltage:
Rated power:
Fuse:
Insulation grade:
Inverter:
No-load voltage:
Spottable stud diameter:
Duty cycle:
Welding mode:
Dimensions:
Weight:
|
AC220V 50/60Hz 1ph
3KVA
4A
H
IGBT
50-150V
Ф3-Ф6mm
80%
Dent Pulling
530x600x1640mm
12/20kg
|

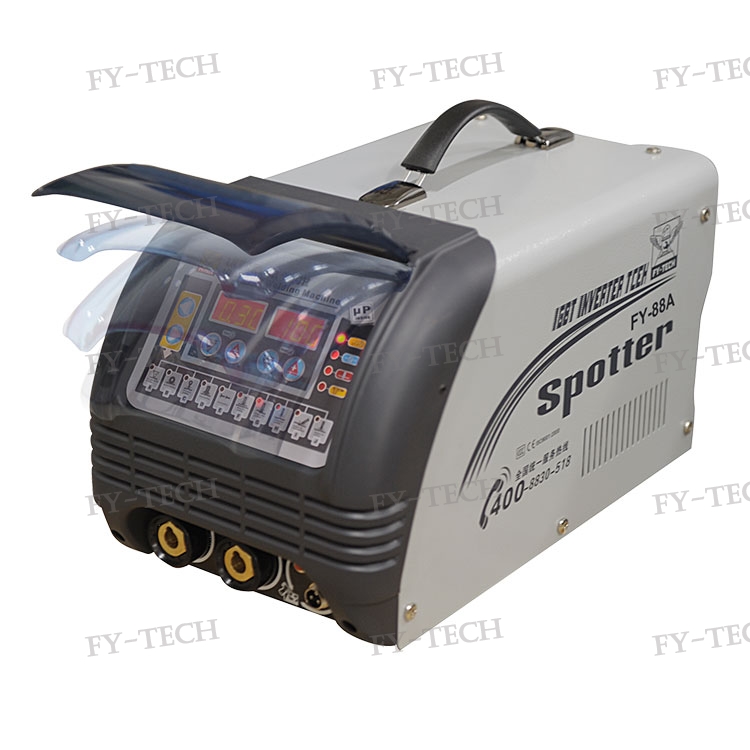

2) FY-88A
Input voltage:
Input power:
Input current:
Max welding current:
Operation way:
Welding time
Dimensions:
Weight:
|
AC380V 50/60Hz
7KVA
54A/18A
2800A
Electronic timer continuously
0-99S
250x450x250mm/550×650×820mm
10.5kg/28kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.

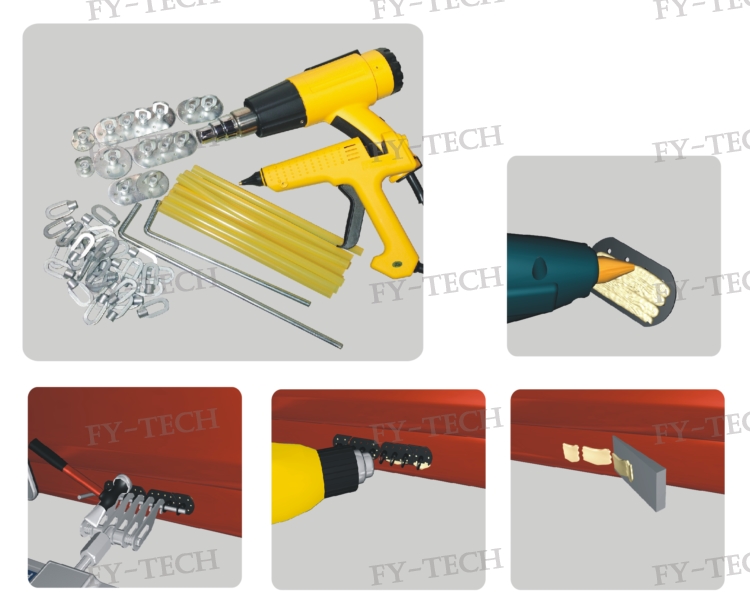

Dent Repair Glue Pulling Kit
This method can quickly repair minor collisions to the car body. After confirming the elastic deformation of the car body, safely and quickly repair it without damaging the paint surface or disassembling any components.
Pictures for reference only, please subject to our available products.

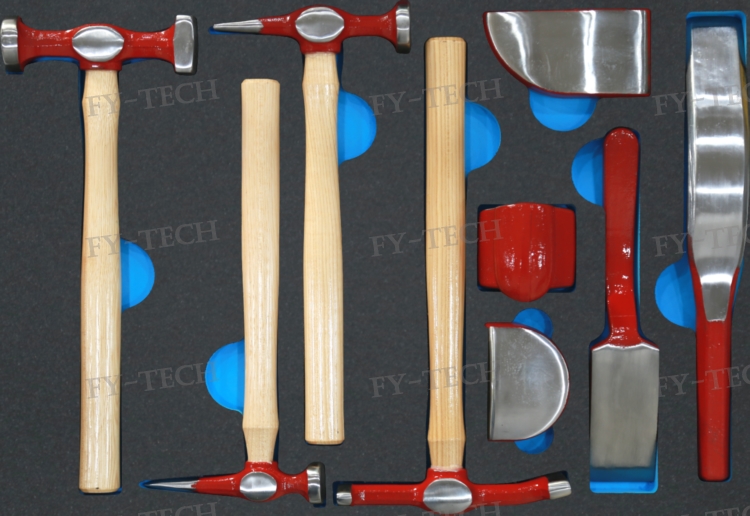

Optional Tools
Optional Accessories

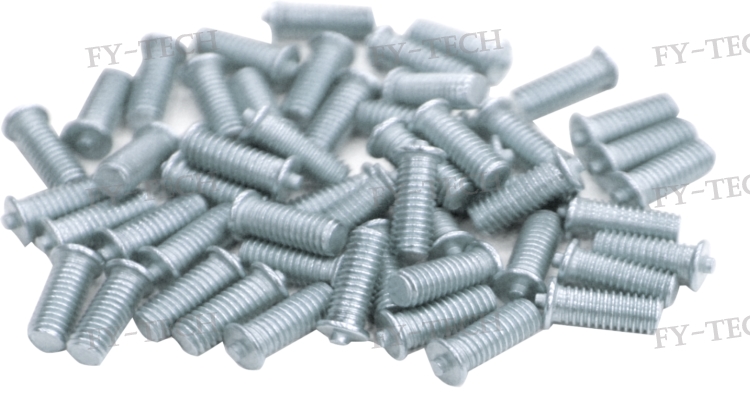

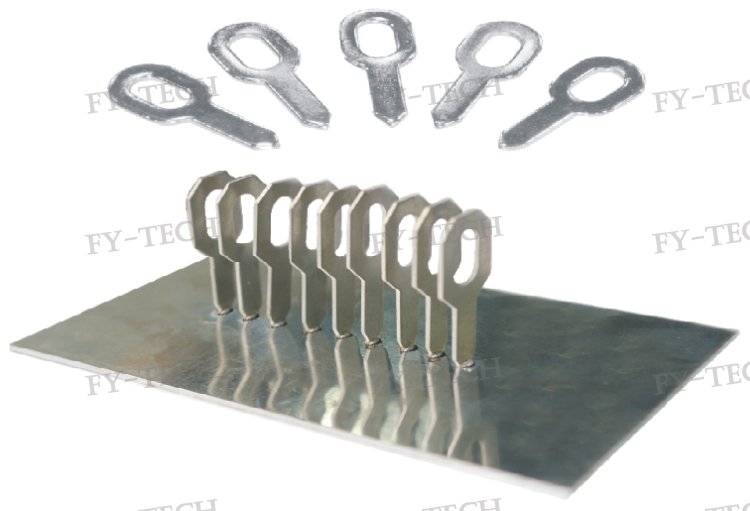

1) Studs
2) Pulling Rings

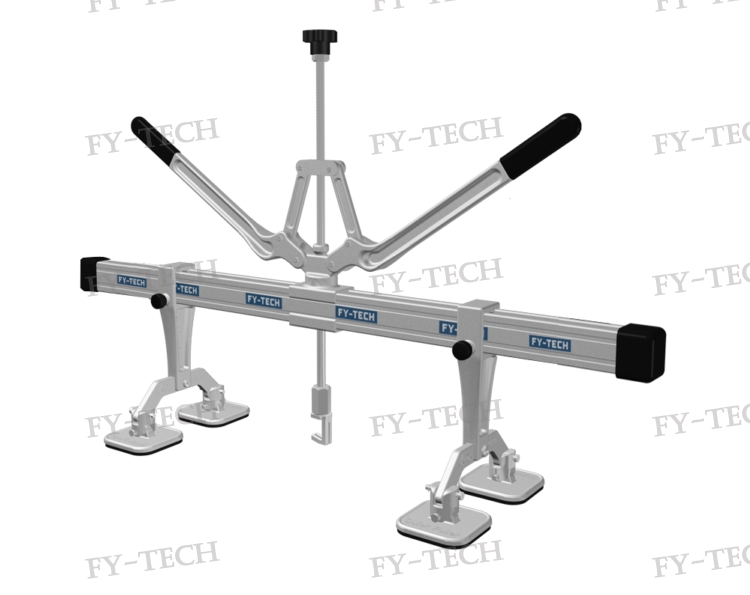

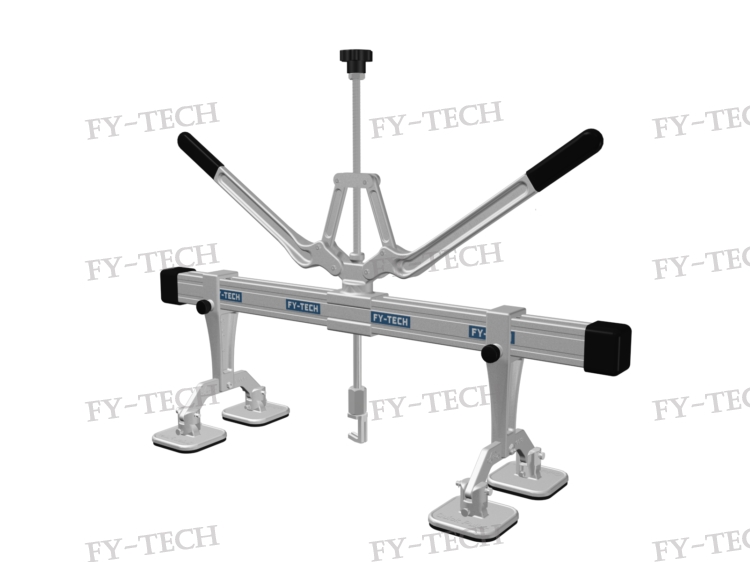

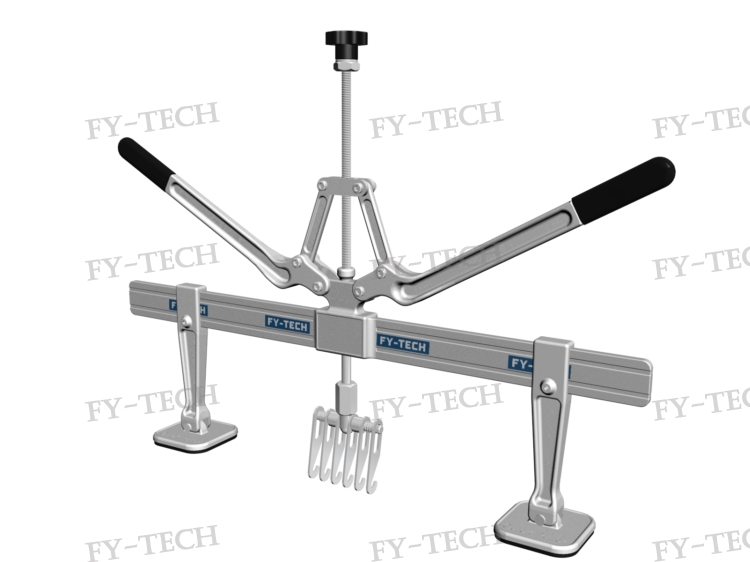

Optional Crossbar Lifters
1) 750mm Crossbar Lifter
2) 850mm Crossbar Lifter
3) 1250mm Crossbar Lifter

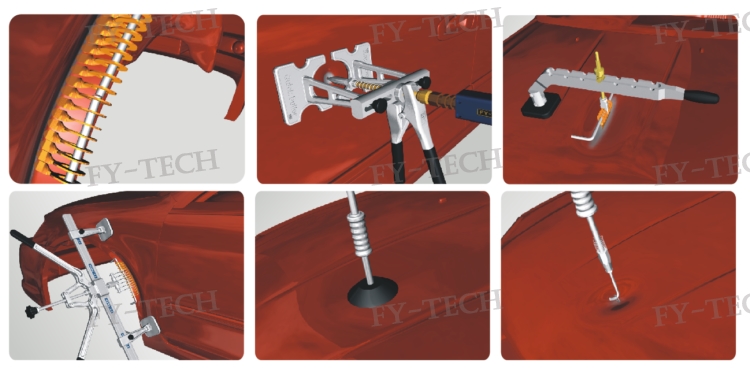

Details
Pictures for reference only, please subject to our available products.
