※ With a multifunctional color LCD panel and the most advanced DSP control technology. It features one button intelligent design to
automatically store equipment information and to select the welding modes for various materials like steel, aluminium,
stainless steel, copper and nickel. The user can store the welding parameters easily and safely.
※ With a world famous brand of welding power supply, IGBT inverter pulsed technology and soft switching control technology. Unit has high
protectiveness, extensive applicability and a world class welding performance.
※ Designed with fender panel for gas cylinder to fix onto the machine.
※ With a high quality welding gun, a durable protective cover and specially designed gun holder.
※ IGBT inverter pulsed and soft switching control technology allows for energy efficient steady welding with fast arc ignition. Materials'
mechanical properties are maintained with less welding deformation and spatter. User can quickly and easily weld car bodies with
various materials and achieve a perfect performance. There is also less post welding treatment work and less welding sparks are created.
Technical data
Input Voltage
Rated Input Power
Rated Input Current
Min ~ Max Output Current
Duty Cycle
No-load Output Voltage
Efficiency
Power Factor
Insulation Grade
Steel Wire Diameter
Alu Alloy Wire Diameter
Copper Alloy Wire Diameter
Wire Feeder
Size
Weight
|
380V
10.5KVA
16A
35A/15.7V~320A/33V
250A/100%~320A/65%
65V
≥90%
≥0.95
F
Ф0.6-1.2mm
Ф0.8-1.2mm
Ф0.6-1.6mm
Four-roll Drive
93x35x83cm
92kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.
Details

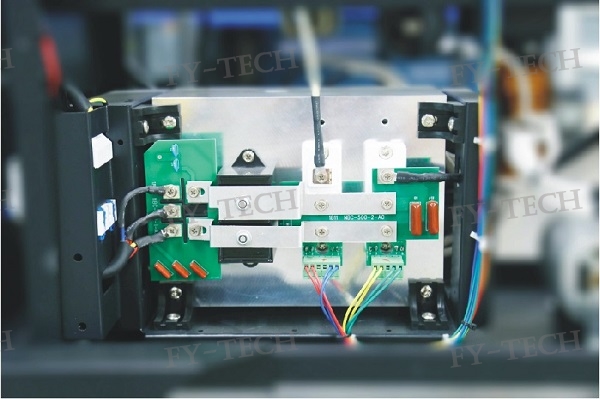

1) IGBT Inverter Power Supply

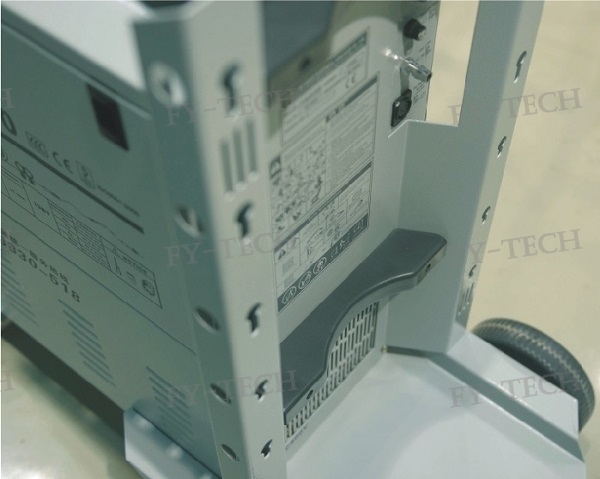

2) Fender Panel

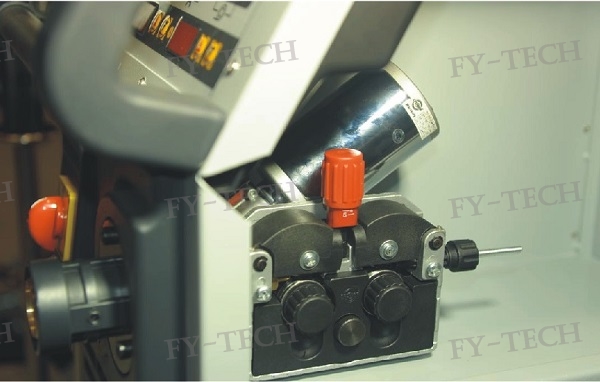

3) Wire Feeder
Pictures are for reference only, please subject to our available products.
Optional Accessories

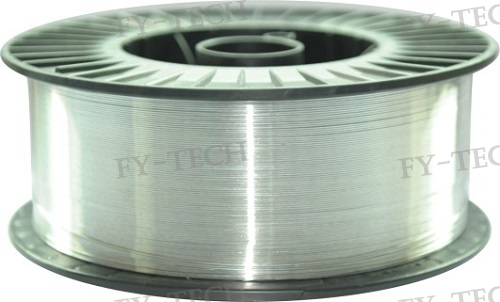

1) C035 Alu Alloy Wire

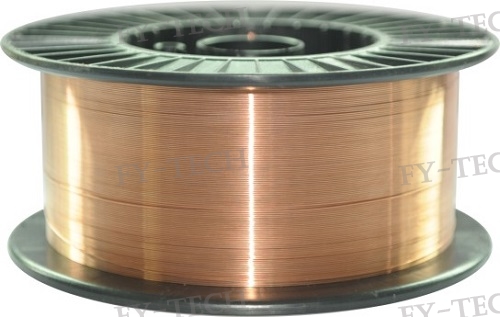

2) C036 Steel Wire

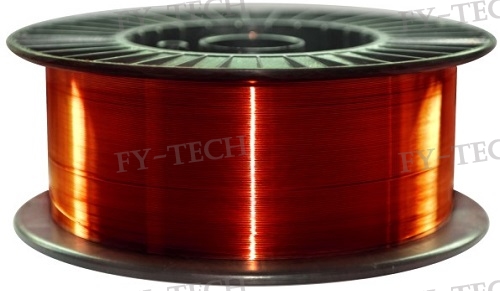

3) C037 Copper Alloy Wire

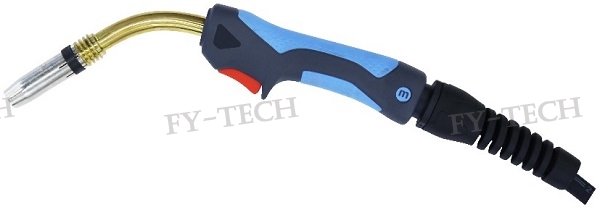

4) C033F 15AK Alu Welding Torch

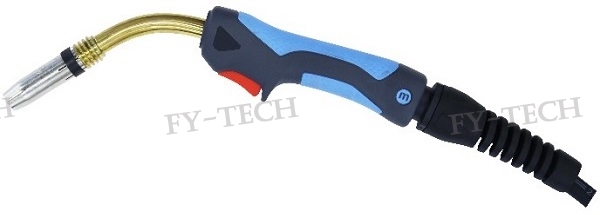

5) C007D 15AK, 24AK or 36AK Welding Torch

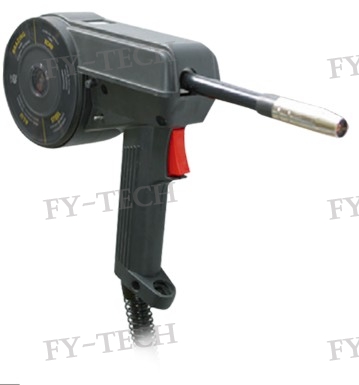

6) C034 Spool Gun

Pictures are for reference only, please subject to our available products.
