※ With the most advanced international IGBT inverter technology and advanced digital control technology and user friendly design, all you have
to do is to select the welding function corresponding to the workpiece thickness to achieve the best weld quality.
※ Digital control system offers greater stability of the output power.
※ Automatic mains voltage monitoring.
※ Overheat protection.
※ Stepless current regulation.
※ Designed to repair different kinds of car steels such as conventional steel, stainless steel, etc.
※ Various welding procedures are available such as shrinking, washer welding, dent pulling spot welding, flattening, waveform wire welding,
stud welding, OT washer welding, triangle washer welding etc.
※ High precision time and power adjustment system.
※ Inverter technology with high efficiency, energy consumption can be reduced up to 50%.
Technical Data
Input voltage:
Input power:
Input current:
Max welding current:
One-side welding thickness:
Operation way:
Welding time
Packing Dimensions:
Gross Weight:
|
AC380V 50/60Hz
6.7KVA
48A/16A
2700A
0.8+1.0mm
Electronic timer continuously
0-99S
64×53.8×82.8cm
47.5kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.

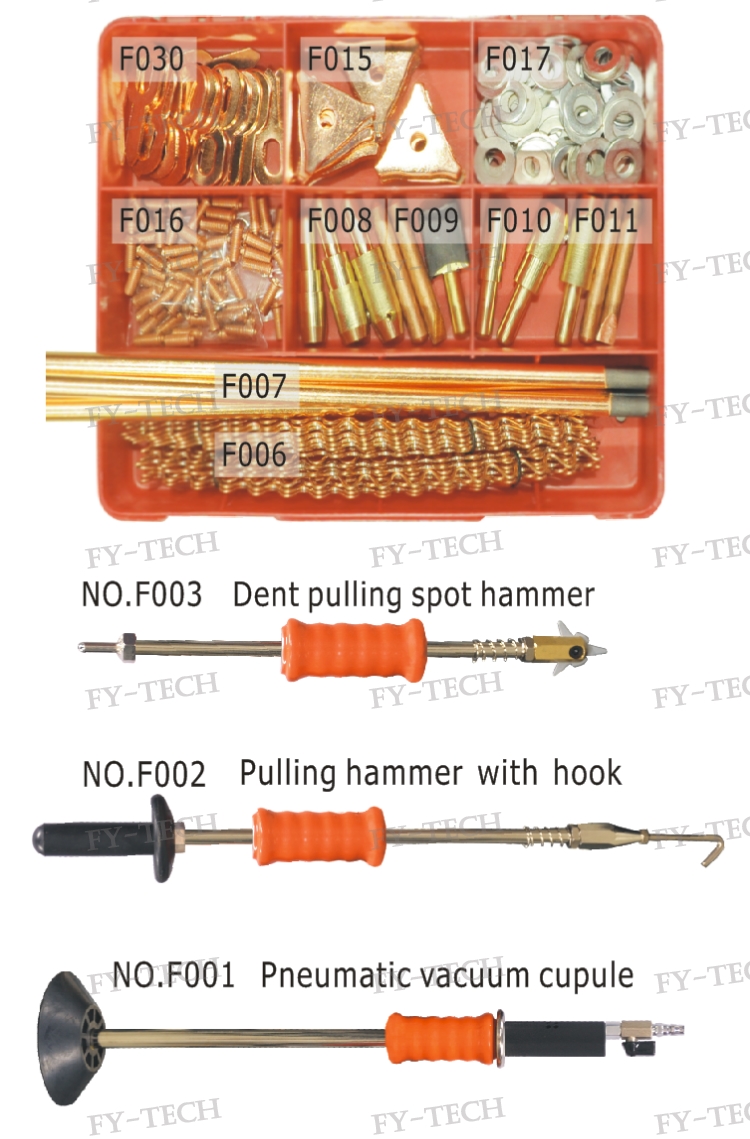

Accessories
|
Accessories
|
Quantity
|
|
F002 Pulling Hammer with Hook
F003 Dent Pulling Spot Hammer
F006 Wavy Wire
F007 Carbon Rod
F008 Spot Welding Electrode Tip
F009 Carbon Rod Connector
F010 Wavy Wire Electrode Tip
F011 Washer Connector
F013 Triangle Washer Connector
F014 Claw
F015 Triangle Washer
F016 Stud
F017 ɸ12mm Washer
F017 ɸ10mm Washer
F018 Earth Clamp
F019 Manual Cupule
F030 OT Washer
F033 Wrench
F034 Stud Connector
|
1 set
1 set
15pcs
3pcs
1pc
1pc
1pc
1pc
----
1pc
10pcs
30pcs
15pcs
15pcs
1pc
1pc
20pcs
1pc
1pc
|
Pictures for reference only, please subject to our available products.

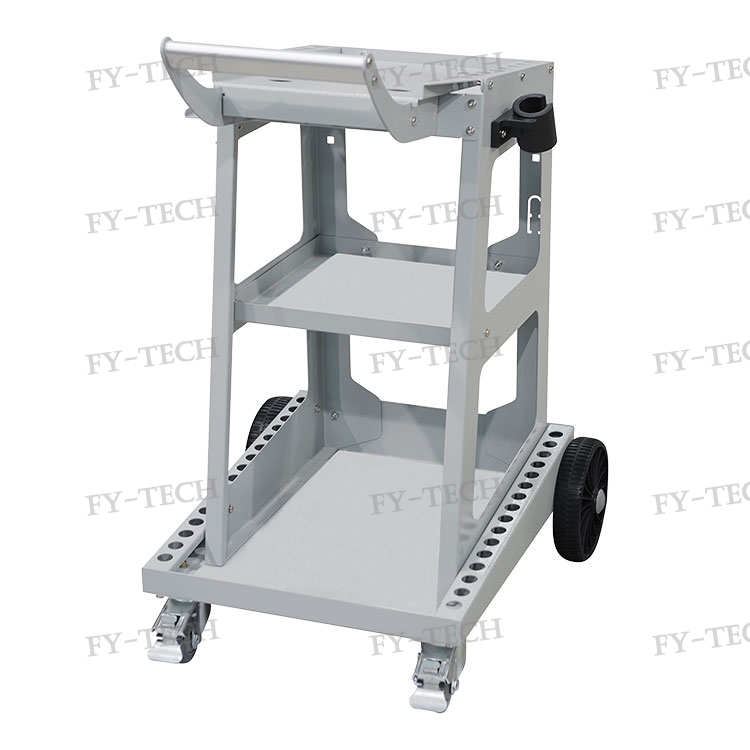

Optional Trolley
Pictures for reference only, please subject to our available products.
